Brand: Hoffman
|
SKU:
649661

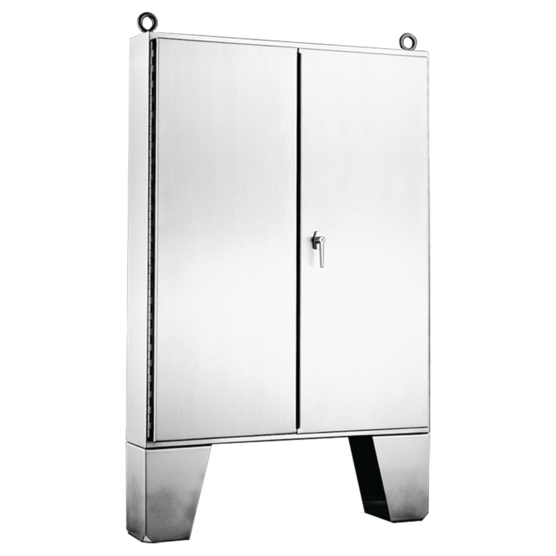

Hoffman A604810SSLP | Two-Door Floor Stand, 3-Point Latch, Type 12, 60x48x10, SS 304
Regular price
$18,142.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A604810SSLP | Two-Door Floor Stand, 3-Point Latch, Type 12,...
Regular price
$18,142.61
Unit price
Description
Description
Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water.
Purchase panels separately.
Includes frame, door(s), two sides and four lifting eyes.
Main Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Strong, rigid construction with body stiffeners
- Gasketed overlapping doors eliminate need for centerpost
- Plated steel 3-point latching mechanism and key-locking handle
- Heavy-gauge continuous hinges support each door
- Data pocket, provided on door with 3-point latches, is high-impact thermoplastic
- 12-in. (305-mm) floor stands are bolted to enclosure
- Heavy-duty lifting eyes are Type 316 stainless steel
- Panel supports
- Collar studs for mounting optional panel
- Bonding provision on doors; grounding studs on body
- Accessory mounting channel in top of enclosure
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA File No. 42186: Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: A60P48
- Catalog #: A60P48G
- Catalog #: APWK116NFNM
- Catalog #: APWK138NFNM
- Catalog #: APWK138NFSS
- Catalog #: APWK1711NFSS
- Catalog #: APWK2315NFSS
- Catalog #: APWK2919NFSS
Specifications
| Height | 60.06 in / 1526 mm |
|---|---|
| Width | 48.06 in / 1221 mm |
| Depth | 10.06 in / 256 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Stainless Steel 304 |
| Panel | A60P48 |
| Galvanized Panel | A60P48G |
| Panel Gauge | 11 |
| Panel Size | 56.00 x 44.00 in / 1422 x 1118 mm |
| Stiffener Body | 1 (X-form) |
| Color | Unpainted |
| Finish | Brushed #4 |
| BULLETIN NUMBER | A12S |
Documents and Downloads
Documents and Downloads
- Hoffman A604810SSLP CE-00014
- Hoffman A604810SSLP CERT-00035
- Hoffman A604810SSLP Declaration of Conformity, CSA Type 12
- Hoffman A604810SSLP Disconnect Enclosure with Handle, Type 12 Instruction Manual
- Hoffman A604810SSLP Lockwasher and Hub Installation Instruction Manual
- Hoffman A604810SSLP Enclosure Alterations
- Hoffman A604810SSLP Large Enclosure Handling Instructions
- Hoffman A604810SSLP Data Sheet
