Brand: Hoffman
|
SKU:
649662

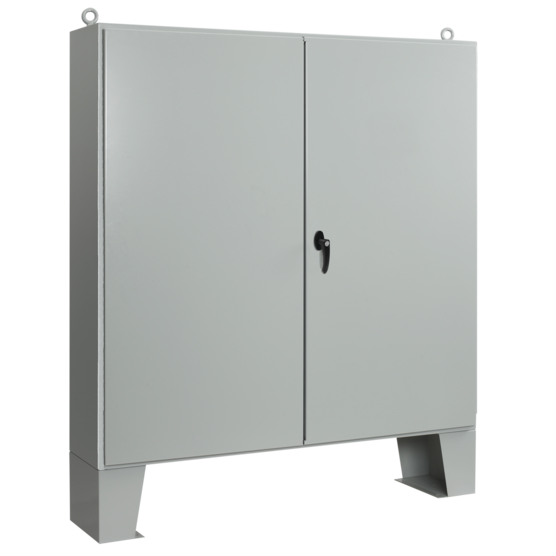

Hoffman A604812LPG | Two-Door Floorstand Type 12 Gray, Inside, 60.06x48.06x12.06, Gray, Steel
Regular price
$4,091.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A604812LPG | Two-Door Floorstand Type 12 Gray, Inside, 60.0...
Regular price
$4,091.78
Unit price
Description
Description
Enclosures have gasketed, overlapping doors to keep the elements at bay and floor stands that provide additional height and access for cleaning under the enclosure. Because there is no centerpost, it is simple to install and remove panels.
Order panels separately.
Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
Main Features
- Seams continuously welded and ground smooth; no holes or knockouts
- 3-point latch mechanism operated by oil-tight key-lock handle
- Gasketed overlapping doors with no centerpost
- Concealed, easy-to-remove hinges
- Data pocket is high-impact thermoplastic
- 12-in. floor stands welded to enclosure
- Heavy-duty lifting eyes
- Panel supports
- Oil-resistant gasket
- Collar studs for mounting optional panel
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA, File No. 42186, Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: N280416G050
- Catalog #: A60P48
- Catalog #: A60P48G
- Catalog #: APWK116NFNM
- Catalog #: APWK1212H
- Catalog #: APWK133NF
- Catalog #: APWK138NF
- Catalog #: APWK138NFNM
Hoffman On Demand Alternatives
- Catalog #: A727224ULP
- Catalog #: A727216ULP
- Catalog #: A727212ULP
- Catalog #: A727210ULP
- Catalog #: A726024ULP
- Catalog #: A726016ULP
- Catalog #: A726012ULP
- Catalog #: A726010ULP
Specifications
| Height | 60.06 in / 1526 mm |
|---|---|
| Width | 48.06 in / 1221 mm |
| Depth | 12.06 in / 306 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Panel | A60P48 |
| Conductive Panel | A60P48G |
| Panel Gauge | 11 |
| Panel Size | 56.00 x 44.00 in / 1422 x 1118 mm |
| Stiffener | 15 in / 381 mm |
| BULLETIN NUMBER | A12L |
