Brand: Hoffman
|
SKU:
649667

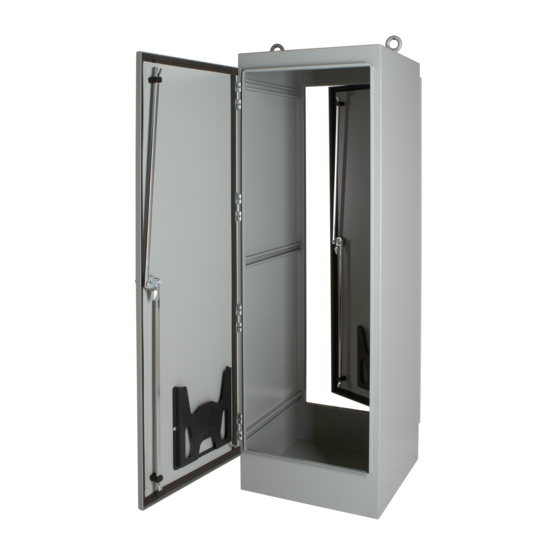

Hoffman A604818FSD | Free-Stand, Single Access, Type 12, 60.06x48.06x18.06, Steel
Regular price
$6,857.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A604818FSD | Free-Stand, Single Access, Type 12, 60.06x48.0...
Regular price
$6,857.50
Unit price
Description
Description
Available with front or front and rear access, these Type 12 enclosures have sturdy unibody construction and flexible internal mounting options to provide panel and component mounting flexibility
Order panels separately.
Four lifting eyes are furnished if C = 30.06 (764mm) or more. Removable 12.00 x 12.00 (305mm x 305mm) data pocket included.
Main Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
- Lifting eyes for easy handling
- 3-point latches operated by oil-tight key-locking handle
- Concealed, easy-to-remove hinges
- Data pockets are high-impact thermoplastic
- Internal mounting channels welded horizontally to sides at top, bottom and center
- Optional panels and rack mount angles can be mounted anywhere along channels
- Oil-resistant door gasket
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- E.I.A. RS310D
- CSA, File No. 42186, Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: G280416G050
- Catalog #: AL2ACCW
- Catalog #: AL2DCCW
- Catalog #: AFK0618
- Catalog #: ALGDSTOP2
- Catalog #: AEK115
- Catalog #: APWK138NF
- Catalog #: A60P24F1
Hoffman On Demand Alternatives
- Catalog #: A907224FSD
- Catalog #: A907220FSD
- Catalog #: A904820FSD
- Catalog #: A903624FS
- Catalog #: A727218FSD
- Catalog #: A726024FSD
- Catalog #: A724824FSD
- Catalog #: A724818FSD
Specifications
| Height | 60.06 in / 1526 mm |
|---|---|
| Width | 48.06 in / 1221 mm |
| Depth | 18.06 in / 459 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Rack Unit Quantity | 28 |
| Lifting Eye Quantity | 2 |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 411 lb |
| BULLETIN NUMBER | A30 |
Documents and Downloads
Documents and Downloads
- Hoffman A604818FSD Declaration of Conformity, CSA Type 12
- Hoffman A604818FSD Declaration of Compliance
- Hoffman A604818FSD Declaration of Conformity
- Hoffman A604818FSD Lockwasher and Hub Installation Instruction Manual
- Hoffman A604818FSD Enclosure Alterations
- Hoffman A604818FSD Free-Stand, Single or Dual Access, Type 12 Instruction Manual
- Hoffman A604818FSD Single-Sided Shelf Repainting Instructions
- Hoffman A604818FSD Large Enclosure Handling Instructions
- Hoffman A604818FSD Data Sheet
