Brand: Hoffman
|
SKU:
649677

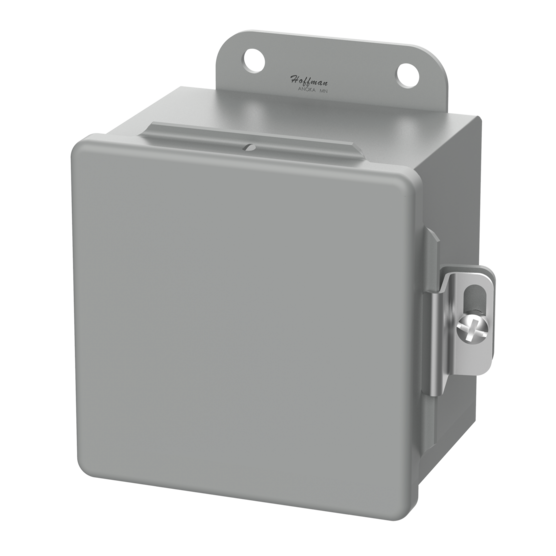

Hoffman A604CH | Continuous Hinge Clamps CH Type 12, 6.00x4.00x3.00, Gray, Steel
Regular price
$132.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A604CH | Continuous Hinge Clamps CH Type 12, 6.00x4.00x3.00...
Regular price
$132.24
Unit price
Description
Description
This easy-to-open, continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications.
Reference the Specification Sheet for Popular Accessories.
Main Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Screw-down door clamps
- Bonding provision on door
- External wall-mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 12, 13; File No. E27567
- cUL Listed per CSA 22.2 No. 94; Type 12, 13; File No. E27567
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA 22.2 No. 94; Type 12, 13; File No. E61997
- NEMA/EEMAC Type 12 and 13
- CSA, File No. 42184: Type 12
- IEC 60529, IP65
Related Accessories
- Catalog #: A6P4
- Catalog #: AL23SS
- Catalog #: APLKJIC
- Catalog #: APLKJIC6SS
- Catalog #: A6P4G
- Catalog #: AL18
- Catalog #: A6P4SS
- Catalog #: A6P4AL
Hoffman On Demand Alternatives
- Catalog #: A808CH
- Catalog #: A806CH
- Catalog #: A606CH
- Catalog #: A604CH
- Catalog #: A404CH
- Catalog #: A1614CH
- Catalog #: A16148CH
- Catalog #: A1412CH
Specifications
| Height | 6 in / 152 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 3 in / 76 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Mild Steel |
| Panel Size | 4.88 x 2.88 in / 124 x 73 mm |
| Conductive Panel | A6P4G |
| Overall Dimensions | 7.50 x 4.94 in / 191 x 125 mm |
| Mounting | 6.75 x 2.00 in / 171 x 51 mm |
| Panel | A6P4 |
| Color | Gray |
| Color Code | ANSI 61 |
| BULLETIN NUMBER | A51CH |
