Brand: Hoffman
|
SKU:
649678

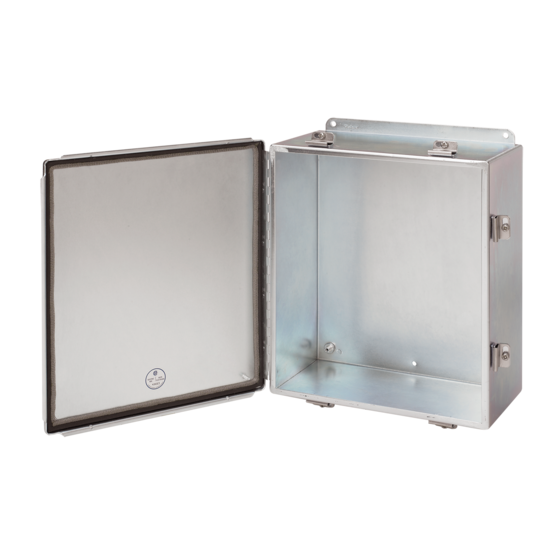

Hoffman A604CHEMC | Continuous Hinge with Clamps, EMC, Type 12, 6.00x4.00x3.00, Steel
Regular price
$550.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A604CHEMC | Continuous Hinge with Clamps, EMC, Type 12, 6.0...
Regular price
$550.55
Unit price
Description
Description
This enclosure is used in indoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.
Purchase panels separately
Main Features
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- Combination woven steel mesh and oil-resistant gasket
- Stainless steel cover clamps and screws
- Weldnuts provided for mounting optional panels and terminal kits in size 6.00 x 4.00 in. (152 x 102mm) and larger
- Shielding effectiveness greater than 80 dB at 1 GHz
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 12, 13; File No. E27567
- cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E27567
- UL 508A Listed; Type 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12,13; File No. E61997
- NEMA/EEMAC Type 12, 13
- CSA, File No. 42184: Type 12, 13
- IEC 60529, IP54
Related Accessories
- Catalog #: A6P4
- Catalog #: AL23SS
- Catalog #: APLKJIC
- Catalog #: APLKJIC6SS
- Catalog #: A6P4G
- Catalog #: AL18
- Catalog #: A6P4SS
- Catalog #: A6P4AL
Specifications
| Height | 6 in / 152 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 3 in / 76 mm |
| Protection Rating | NEMA Type 12; IP54 |
| Material | Mild Steel |
| Conductive Panel | A6P4G |
| Panel | A6P4 |
| Panel Size | 4.88 x 2.88 in / 124 x 73 mm |
| Mounting | 6.75 x 2.00 in / 171 x 51 mm |
| Overall Dimensions | 7.50 x 4.81 in / 191 x 122 mm |
| Color | Unpainted |
| Finish | Galvanized |
| BULLETIN NUMBER | A53 |
