Description

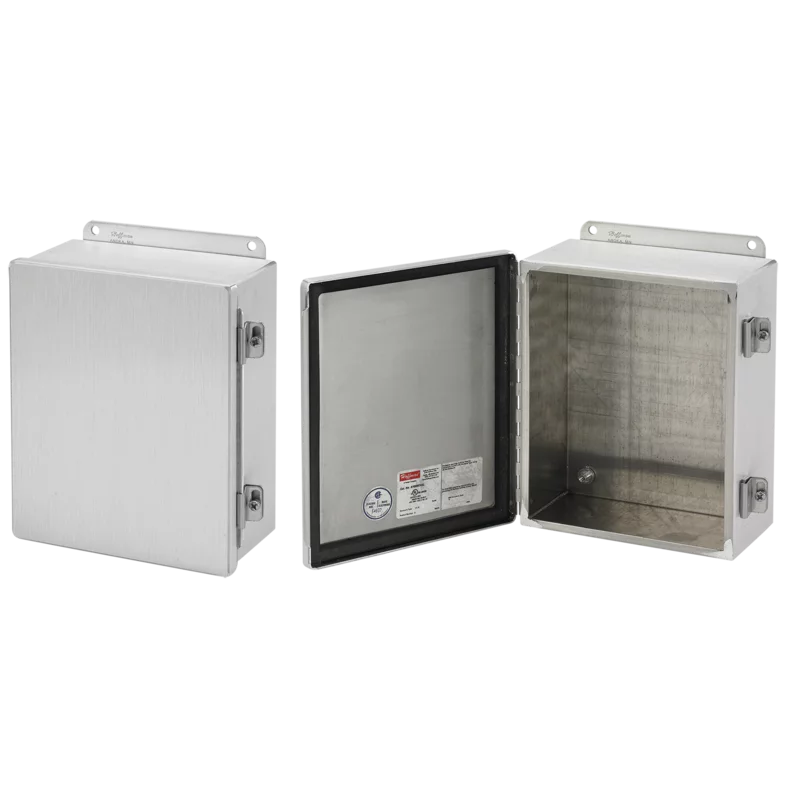

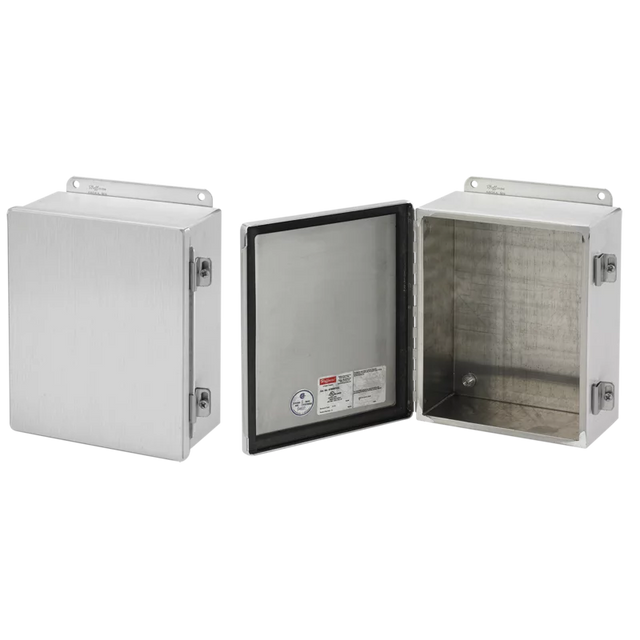

Hoffman A606CHAL | Continuous Hinge with Clamps Type 12, 6.00x6.00x4.00, Brushed, Aluminum

The Continuous Hinge Aluminum Enclosure with Clamps is a lightweight enclosure solution that features a hinged cover that secures on the side opposite the hinge via stainless steel clamps and screws. This enclosure is ideal for protecting components and controls in indoor applications, and maintains a Type-12 rating.

Hoffman - A606CHAL - Features

Lightweight, Type 12 hinged enclosure.
Seams continuously welded and ground smooth
Stainless steel screws and clamps secure cover
Cover removed by pulling stainless steel continuous hinge pin
Oil-resistant gasket
Weldnuts furnished for mounting optional panels and terminal block kits
Purchase panels separately
Optional aluminum panels are unpainted, or steel panels are painted white; conductive and stainless panels are also available for most sizes.
BULLETIN NUMBER: A51A
Industry Standards:
UL 50, 50E Listed; Type 12, 13; File No. E27567
cUL Listed per CSA C22.2 No 94; Type 12, 13; File No. E27567
NEMA/EEMAC Type 12, 13
CSA File No. 42184: Type 12
IEC 60529, IP65
Meets NEMA Type 3RX requirements

Specifications

Hoffman - A606CHAL - Product Categories

Industrial
Wall Mounted Industrial Enclosures
Aluminum Wall Mounted Industrial Enclosures

Hoffman - A606CHAL - Specifications

Brand Name	Hoffman
Manufacturer Part Number	A606CHAL
Item Description	Continuous Hinge with Clamps Type 12, 6.00x6.00x4.00, Brushed, Aluminum
Height	6 in / 152 mm
Width	6 in / 152 mm
Depth	4 in / 102 mm
Protection Rating	NEMA Type 12; IP65
Material	Aluminum
Panel Size	4.88 x 4.88 in / 124 x 124 mm
Conductive Panel	A6P6G
Overall Dimensions	7.50 x 6.94 in / 191 x 176 mm
Aluminum Panel	A6P6AL
Steel Panel	A6P6
Mounting	6.75 x 4.00 in / 171 x 102 mm
Color	Unpainted
Finish	Brushed
Thickness	0.08 in / 2 mm
Weight	1.7 lb
