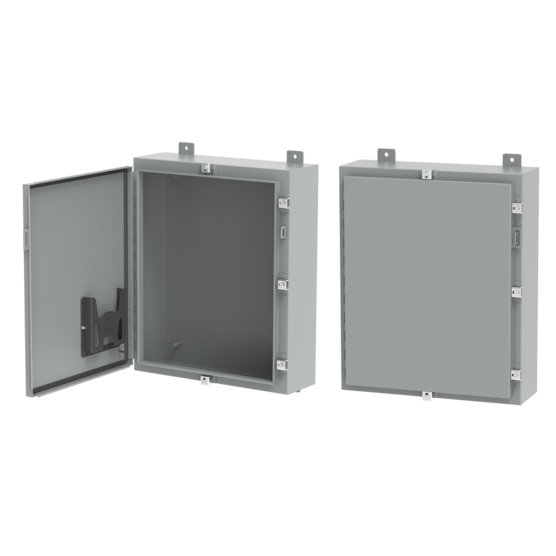

Hoffman A60H36BLP | Continuous Hinge with Clamps, Type 4, 60.00x36....
Description
Description
These single-door enclosures feature a hinged door with clamps on three sides to create a secure seal in indoor or outdoor environments. The gray polyester powder finish inside and out provides enhanced corrosion protection in outdoor applications.
Reference the Specification Sheet for Popular Accessories.
Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.
Main Features
- Seams continuously welded and ground smooth
- External wall-mounting brackets for easy installation
- Formed external flanges around all sides of enclosure opening
- Stainless steel screw-down clamps on three sides of door
- Removable heavy gauge stainless steel continuous hinge pin
- Removable door with continuous hinge for strength and ruggedness
- Hasp and staple provided for padlocking
- Data pocket is high-impact thermoplastic
- Collar studs for mounting optional panels
- Bonding provision on door
- Seamless foam-in-place gasket
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997
- NEMA/EEMAC Type 3, 4, 12, and 13
- CSA, File No. 42186: Type 4 and 12
- IEC 60529, IP66
Related Accessories
- Catalog #: A60P36
- Catalog #: A60P36G
- Catalog #: AFC412SS
- Catalog #: APWK116NFNM
- Catalog #: APWK133NF
- Catalog #: APWK138NF
- Catalog #: APWK138NFNM
- Catalog #: APWK138NFSS
Hoffman On Demand Alternatives
- Catalog #: A36H30DLP
- Catalog #: A30H30BLP
- Catalog #: A30H24DLP
- Catalog #: A30H24BLP
- Catalog #: A24H24BLP
- Catalog #: A24H20BLP
- Catalog #: A20H20BLP
- Catalog #: A20H16BLP
Specifications
| Height | 60 in / 1524 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 8 in / 203 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; IP66 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 14 ga / 1.9 mm |
| Panel | A60P36 |
| Conductive Panel | A60P36G |
| Panel Size | 57.00 x 33.00 in / 1448 x 838 mm |
| BULLETIN NUMBER | A4 |
