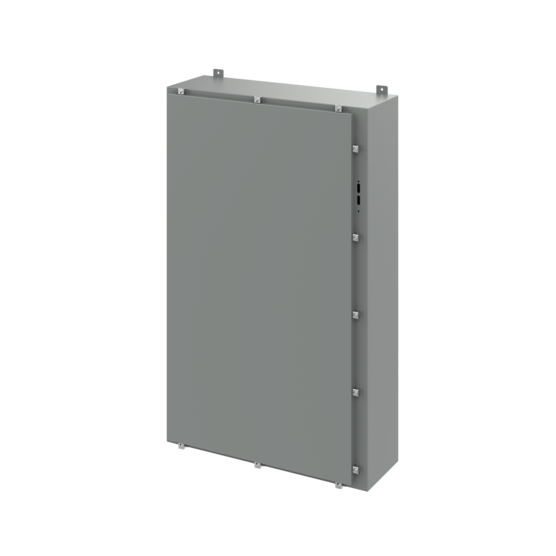

Hoffman A60HS3712LP | Disconnect Enclosure with Clamps, Type 4, 60.00x37.38x12.00, Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A60HS3712LP | Disconnect Enclosure with Clamps, Type 4, 60....
Description
Description
For disconnect applications in which a clamp-secured door is preferred. Clamps on three sides of the door keep liquid and contaminants out. Preferred cutout accepts major brand disconnect switches and circuit breakers..
Each Disconnect Enclosure with Clamps, Type 4 is furnished with adjustable door interlock bracket fastened to door, instructions to locate and install disconnect switches, circuit breakers and operating mechanisms.
Purchase panels separately.
NOTE: nVent HOFFMAN cannot guarantee compatibility of disconnect configurations with third-party latching.
Main Features
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Removable door with continuous hinge
- Type 4 rated door gasket
- Collar studs for mounting optional panels
- Holes in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door
- Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- NEMA/EEMAC Type 3, 4, 12, 13
- CSA File No. 42186: Type 4, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
- Catalog #: N280416G050
Specifications
| Height | 60 in / 1524 mm |
|---|---|
| Finish | Powder Coated |
| Width | 37.38 in / 949 mm |
| Color | Gray |
| Depth | 12 in / 305 mm |
| Protection Rating | NEMA Type 4; IP66 |
| Material | Mild Steel |
| Panel Size | 57.00 x 33.00 in / 1448 x 838 mm |
| Conductive Panel | A60P36G |
| Clamp Quantity | 11 |
| Data Pocket Size | 12.00 x 12.00 in / 305 x 305 mm |
| Panel | A60P36 |
| BULLETIN NUMBER | A19 |
Documents and Downloads
Documents and Downloads
- Hoffman A60HS3712LP CERT-00040
- Hoffman A60HS3712LP EU Declaration of Conformity - Type 4/4X Industrial Control Enclosures
- Hoffman A60HS3712LP Declaration of Compliance
- Hoffman A60HS3712LP Enclosure Alterations
- Hoffman A60HS3712LP Disconnect Enclosure with Clamps, Type 4 Instruction Manual
- Hoffman A60HS3712LP Data Sheet
