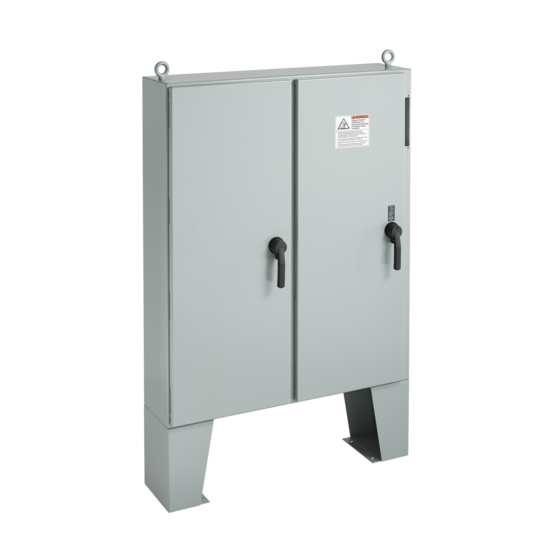

Hoffman A60X6124LPFTC | Two-Door with Floor Stands Disconnect Enclosure, Type 12, 60.12x61.75x24.12
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A60X6124LPFTC | Two-Door with Floor Stands Disconnect Enclo...
Description
Description
A disconnect can be installed on the centerpost or right side of this enclosure. Floor stands provide additional height and access for cleaning under the enclosure.
Purchase panels separately.
All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a HOFFMAN platform assembly, catalog number ADSCLPA, purchased separately. • ABB Controls flange-operated devices • Eaton Cutler-Hammer C361 devices • Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism (see footnote below) • General Electric Type TDA devices (see footnote below) • Schneider Square D Class 9422 devices (see footnote below)
The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Eaton Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2 connecting rod. • For General Electric devices, order catalog number TDSR extended length drive rod • For Schneider Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods.
Main Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Heavy-duty lifting eyes anchor into reinforced top
- Data pocket is high impact thermoplastic
- 15-inch floor stands are welded to enclosure
- Provisions for mounting lights
- Oil-resistant door gasket
- Panel supports
- Collar studs provided for mounting optional panels
- Master door is right-hand door on X enclosures and left-hand door on CPX enclosures
- Mechanical interlock operated by master door prevents slave door from being opened first; doors can be closed in any order
- Includes door hardware
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA File No. 42186: Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: APWK53NF
- Catalog #: A60P60
- Catalog #: A60P60G
- Catalog #: UBP
- Catalog #: ABBLC
- Catalog #: ABBSC
- Catalog #: ABBSV
- Catalog #: ABF
Hoffman On Demand Alternatives
- Catalog #: A72X7324LPFTC
- Catalog #: A72X7318LPFTC
- Catalog #: A72X7312LPFTC
- Catalog #: A72X6118LPFTC
- Catalog #: A72X6112LPFTC
- Catalog #: A60X6118LPFTC
- Catalog #: A60X6112LPFTC
- Catalog #: A60X4918LPFTC
Specifications
| Height | 60.12 in / 1527 mm |
|---|---|
| Width | 61.75 in / 1568 mm |
| Depth | 24.12 in / 613 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Thickness | 11 ga / 3.04 mm |
| Panel Size | 56.00 x 56.00 in / 1422 x 1422 mm |
| Conductive Panel | A60P60G |
| Panel | A60P60 |
| Stiffener Position | 21.00 in / 533 mm |
| Weight | 626 lb |
| BULLETIN NUMBER | A21 |
