Hoffman A7236SOF19 | Swing-Out Rack Mounting Frame for Free-Stand, ...
Description
Description

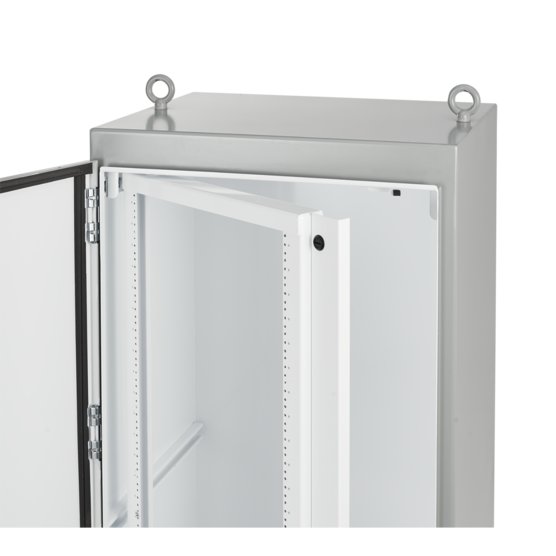

Swing-Out Rack Mounting Frames is used for mounting 19-inch (483-mm) rack mounting equipment. The frame pivots within the enclosure to allow access to the back of the mounted equipment. The frame is full-length and can be installed in 72.00-in. (1829-mm) and 90.00-in. (2286-mm) high enclosures that are 30.00-in. (762-mm) or 36.00-in. (914-mm) wide. They can be installed in 60.00-in. (1524-mm) or 72.00-in. (1829-mm) wide enclosures if a center panel support is used. The design features smooth operation and secure positioning anywhere along the horizontal mounting channels. Frame swings from the left side.
One unit equals 1.75-in (44-mm).
Main Features
- The Swing-Out Rack Mounting Frames have mounting holes tapped #10-32 thread and spaced per EIA 310-D standard
- Plated mounting hardware is provided
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Use With | A727218SSFSD A727224SSFSD |
| Unit Quantity | 33 |
| For Rack Size | 19 in / 483 mm |
| Fits Enclosure Size | 72.06 x 36.06 in / 1830 x 916 mm |
| Max D | 24.25 in / 616 mm |
| Panel Space | 57.99 in |
| Color | White |
| Finish | Powder Coated |
| Thickness | 10 ga / 3.4 mm |
| Weight | 74 lb |
| BULLETIN NUMBER | A80 |
