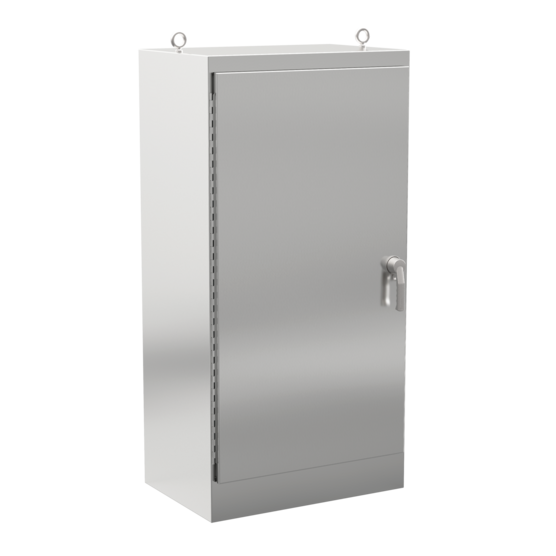

Hoffman A726018SSFSDN4 | Freestand 2 Door Single Access 3 Pt Latch ...
Description
Description
Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries. Four styles are available to provide maximum flexibility.
Purchase panels and accessories separately.
Main Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Two-door enclosures provided with a removable centerpost for easy panel installation
- Heavy-duty lifting eyes are Type 316L stainless steel
- Heavy-duty three-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle
- Seemless foam-in-place gasket assures a water-tight and dust-tight seal
- Body flange trough collar excludes liquids and contaminants
- Heavy-gauge continuous hinges support each door
- High-impact thermoplastic data pocket provided with each enclosure
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Optional panels and rack mounting angles can be mounted anywhere along channels
- Bonding provision on door; grounding stud on body
- Accessory mounting channel provided in enclosure top
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- E.I.A. RS-310-D
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AS050SS
- Catalog #: G280416G051
- Catalog #: A72P30F1
- Catalog #: A72P30F1G
- Catalog #: A72P30F2
- Catalog #: A72P30F2G
- Catalog #: A72P60F1
- Catalog #: A72P60F1G
Hoffman On Demand Alternatives
- Catalog #: A726024SSFSDN4
- Catalog #: A724824SSFSDN4
- Catalog #: A723624SSFSN4
- Catalog #: A723618SSFSN4
Specifications
| Height | 72.06 in / 1830 mm |
|---|---|
| Width | 60.06 in / 1526 mm |
| Depth | 18.06 in / 459 mm |
| Protection Rating | NEMA Type 4X; NEMA Type 4; NEMA Type 12; NEMA Type 13; NEMA Type 3; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 12 ga / 2.78 mm |
| Weight | 531 lb |
| BULLETIN NUMBER | A30S4 |
Documents and Downloads
Documents and Downloads
- Hoffman A726018SSFSDN4 EU Declaration of Conformity - Type 4/4X Industrial Control Enclosures
- Hoffman A726018SSFSDN4 Declaration of Compliance
- Hoffman A726018SSFSDN4 Declaration of Conformity, CSA Type 12
- Hoffman A726018SSFSDN4 Large Enclosure Handling Instructions
- Hoffman A726018SSFSDN4 Lockwasher and Hub Installation Instruction Manual
- Hoffman A726018SSFSDN4 Disconnect Enclosure with Handle, Type 12 Instruction Manual
- Hoffman A726018SSFSDN4 Enclosure Alterations
- Hoffman A726018SSFSDN4 Grounding Kit Instruction Manual
- Hoffman A726018SSFSDN4 Data Sheet
