Brand: Hoffman
|
SKU:
649957

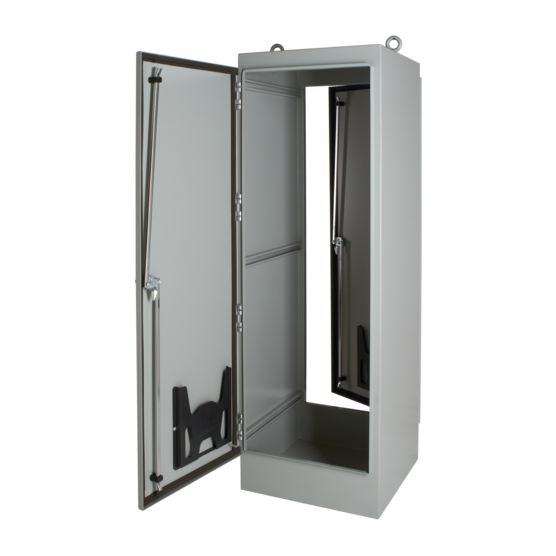

Hoffman A726036FSD | Free-Stand, Single Access, Type 12, 72.06x60.06x36.06, Steel
Regular price
$10,555.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A726036FSD | Free-Stand, Single Access, Type 12, 72.06x60.0...
Regular price
$10,555.41
Unit price
Description
Description
Available with front or front and rear access, these Type 12 enclosures have sturdy unibody construction and flexible internal mounting options to provide panel and component mounting flexibility
Order panels separately.
Four lifting eyes are furnished if C = 30.06 (764mm) or more. Removable 12.00 x 12.00 (305mm x 305mm) data pocket included.
Main Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
- Lifting eyes for easy handling
- 3-point latches operated by oil-tight key-locking handle
- Concealed, easy-to-remove hinges
- Data pockets are high-impact thermoplastic
- Internal mounting channels welded horizontally to sides at top, bottom and center
- Optional panels and rack mount angles can be mounted anywhere along channels
- Oil-resistant door gasket
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- E.I.A. RS310D
- CSA, File No. 42186, Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: G280416G050
- Catalog #: ALGDSTOP2
- Catalog #: AEK115
- Catalog #: A72SMP14
- Catalog #: AL2ACCW
- Catalog #: AL2DCCW
- Catalog #: A72P30F1G
- Catalog #: A72P30F2
Hoffman On Demand Alternatives
- Catalog #: A907224FSD
- Catalog #: A907220FSD
- Catalog #: A904820FSD
- Catalog #: A903624FS
- Catalog #: A727218FSD
- Catalog #: A726024FSD
- Catalog #: A724824FSD
- Catalog #: A724818FSD
Specifications
| Height | 72.06 in / 1830 mm |
|---|---|
| Width | 60.06 in / 1526 mm |
| Depth | 36.06 in / 916 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Rack Unit Quantity | 35 |
| Lifting Eye Quantity | 4 |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 714 lb |
| BULLETIN NUMBER | A30 |
Documents and Downloads
Documents and Downloads
- Hoffman A726036FSD Declaration of Compliance
- Hoffman A726036FSD Declaration of Conformity
- Hoffman A726036FSD Declaration of Conformity, CSA Type 12
- Hoffman A726036FSD Single-Sided Shelf Repainting Instructions
- Hoffman A726036FSD Lockwasher and Hub Installation Instruction Manual
- Hoffman A726036FSD Enclosure Alterations
- Hoffman A726036FSD Free-Stand, Single or Dual Access, Type 12 Instruction Manual
