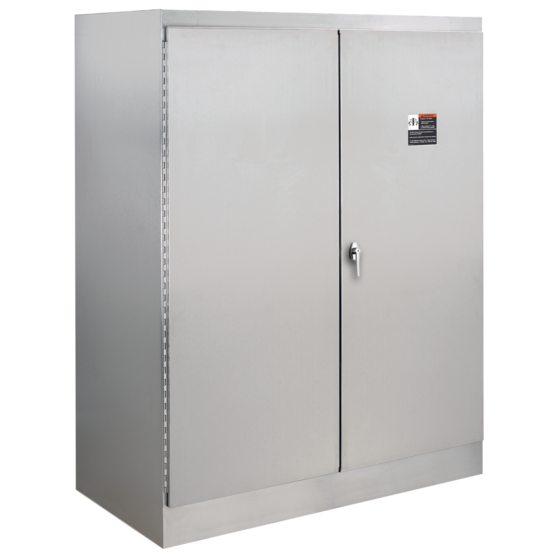

Hoffman A727224SSFSD | Freestand, Type 12, 2 Door, Single Access 72...
Description
Description
Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries.
Purchase panels and accessories separately.
Main Features
- Capable of complex mounting configurations by addition of 19 inch rack-mounting accessory in Type 12 environments
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners welded to back of enclosures maintain flatness and increase rigidity
- Heavy-duty lifting eyes are Type 316 stainless steel
- Plated steel 3-point latching and keylocking handle
- Heavy-gauge continuous hinges support each door
- Data pocket, provided on door(s) with 3-point latches, is high-impact thermoplastic
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Optional panels and rack-mounting angles can be mounted anywhere along channels
- Oil-resistant door gasket attached with oil-resistant adhesive and held in place with steel retaining strips
- Bonding provision on door; grounding studs on body
- Accessory mounting channel provided in enclosure top
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- E.I.A. RS-310-D
- CSA File No. 42186: Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: AS050SS
- Catalog #: G280416G051
Specifications
| Height | 72.06 in / 1830 mm |
|---|---|
| Width | 72.06 in / 1830 mm |
| Depth | 24.06 in / 611 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Stainless Steel 304 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 12 ga / 2.78 mm |
| Weight | 660 lb |
| BULLETIN NUMBER | A30S |
Documents and Downloads
Documents and Downloads
- Hoffman A727224SSFSD Declaration of Conformity, CSA Type 12
- Hoffman A727224SSFSD CERT-00060
- Hoffman A727224SSFSD EU Declaration of Conformity
- Hoffman A727224SSFSD Lockwasher and Hub Installation Instruction Manual
- Hoffman A727224SSFSD Enclosure Alterations
- Hoffman A727224SSFSD Large Enclosure Handling Instructions
