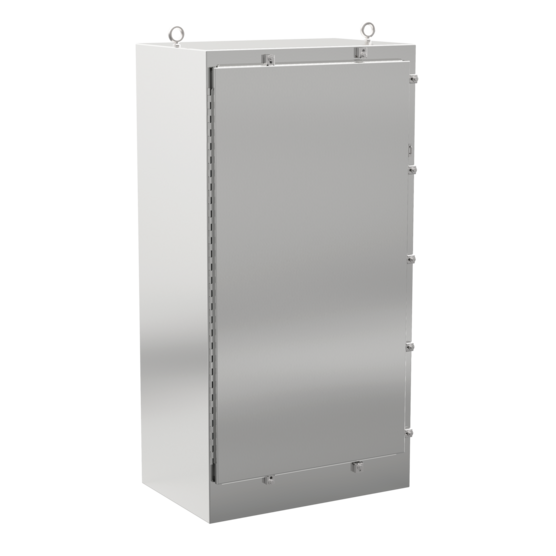

Hoffman A72H2518SSFS | Freestand, Clamps, Type 4X, 72x25x18, SS 304
Description
Description
This single-door enclosure provides industry-leading protection for systems incorporating large components or complex mounting configurations in highly corrosive environments. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. The enclosure is typically used in food-processing plants, pharmaceutical manufacturing facilities, petrochemical plants and waste-water treatment facilities.
Purchase panels and accessories separately.
Main Features
- Capable of complex mounting configurations by addition of 19 inch rack-mounting accessory in Type 4x environments
- Seams continuously welded and ground smooth; no holes or knockouts
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Panels and rack mounting angles can be mounted anywhere along channels
- Rolled lip around three sides of door and along top of enclosure opening excludes liquids and contaminants
- Stainless steel door clamps on three sides of door assure water-tight seal
- Heavy-gauge stainless steel continuous hinge
- Stainless steel hinge pin
- Stainless steel hasp and staple provided for padlocking
- Data pocket is high-impact thermoplastic
- Heavy-duty lifting eyes are Type 316L stainless steel
- Oil-resistant door gasket
- Bonding provision on door; grounding stud on body
- Accessory mounting channel provided in enclosure top
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA Type 3, 3R, 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12
- E.I.A. RS-310-D
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050SS
- Catalog #: G280416G051
- Catalog #: A60P24F1
- Catalog #: A60P24F1G
- Catalog #: A60P24F2
- Catalog #: A60P24F2G
- Catalog #: A72P24F1
- Catalog #: A72P24F1G
Specifications
| Height | 72.06 in / 1830 mm |
|---|---|
| Width | 25.06 in / 637 mm |
| Depth | 18.06 in / 459 mm |
| Protection Rating | NEMA Type 4X; NEMA Type 4; NEMA Type 12; NEMA Type 13; NEMA Type 3; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Stainless Steel Type | 304 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 12 ga / 2.78 mm |
| Weight | 282 lb |
| BULLETIN NUMBER | A4SL |
Documents and Downloads
Documents and Downloads
- Hoffman A72H2518SSFS Data Sheet
- Hoffman A72H2518SSFS CERT-00082
- Hoffman A72H2518SSFS Declaration of Compliance
- Hoffman A72H2518SSFS EU Declaration of Conformity, Type 4X Stainless Steel Industrial Control Enclosures
- Hoffman A72H2518SSFS Grounding Kit Instruction Manual
- Hoffman A72H2518SSFS Large Enclosure Handling Instructions
- Hoffman A72H2518SSFS Lockwasher and Hub Installation Instruction Manual
- Hoffman A72H2518SSFS Enclosure Alterations
