Brand: Hoffman
|
SKU:
650002

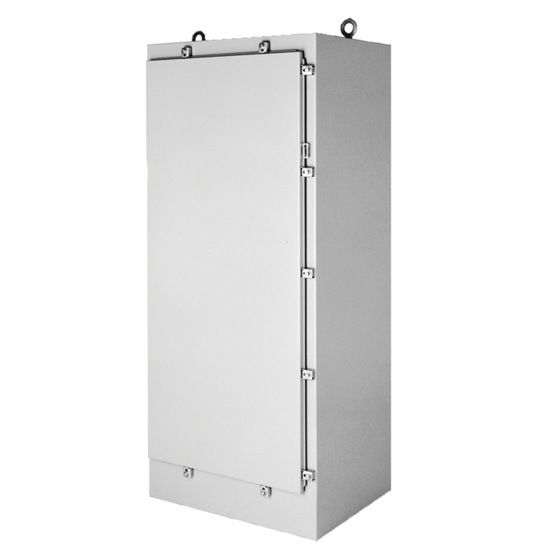

Hoffman A72H3124FS | Free-Stand, Type 4, 72.06x31.06x24.06, Gray, Steel
Regular price
$5,711.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A72H3124FS | Free-Stand, Type 4, 72.06x31.06x24.06, Gray, S...
Regular price
$5,711.70
Unit price
Description
Description
These enclosures are ideal for mounting equipment on panels or racks in indoor or outdoor applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments.
Order panels separately.
Main Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Internal mounting channels welded horizontally at top, bottom and center
- Panels and rack-mounting angles can be mounted anywhere along channels
- Return flange around three sides of door and along enclosure opening excludes liquids and contaminants
- Stainless steel door clamps assure water-tight seal
- Hasp and staple provided for padlocking
- Data pocket is high-impact thermoplastic
- Lifting eyes for easy handling
- Oil-resistant door gasket
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- NEMA Type 3, 4, 12, 13
- CSA, File No. 42186, Type 4, 12
- E.I.A. RS310D
- IEC 60529, IP66
Related Accessories
- Catalog #: G280416G050
- Catalog #: A72FSHDPS
- Catalog #: A72P30F1
- Catalog #: A72P30F1G
- Catalog #: A72P30F2
- Catalog #: A72P30F2G
- Catalog #: A72RP30F6
- Catalog #: A72SMP14
Specifications
| Height | 72.06 in / 1830 mm |
|---|---|
| Width | 31.06 in / 789 mm |
| Depth | 24.06 in / 611 mm |
| Protection Rating | NEMA Type 4; NEMA Type 3; NEMA Type 12; NEMA Type 13; IP66 |
| Material | Mild Steel |
| Rack Unit Quantity | 35 |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 377 lb |
| BULLETIN NUMBER | A4L |
