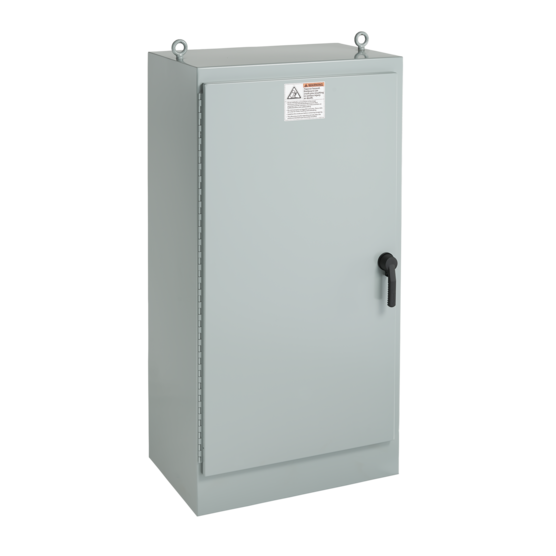

Hoffman A72H3724FS3PT | Free-Stand with 3-Point Latch Type 4, 72.06x37.06x24.06, Gray, Steel
Regular price
$5,787.02
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A72H3724FS3PT | Free-Stand with 3-Point Latch Type 4, 72.06...
Regular price
$5,787.02
Unit price
Description
Description
These enclosures are ideal for mounting equipment on panels or racks in indoor or outdoor applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. The design features HOFFMAN's exclusive PowerGlide Handle with 3-point latching for secure closure.
Order panels separately.
Main Features
- 3-point latch for security and ease of use
- Mounting channels accommodate panel or rack-mount equipment
- Panels and rack mount angles can be mounted anywhere along channels
- Rolled flange around door opening excludes liquids and contaminants
- Lifting eyes for easy handling
- 3-point latch system with PowerGlide handle
- Seams continuously welded and ground smooth; no holes or knockouts
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Heavy-gauge continuous hinge with stainless steel hinge pin
- Data pocket is high-impact thermoplastic
- Lifting eyes
- Oil-resistant door gasket
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- NEMA Type 3, 4, 12, 13
- E.I.A. RS310D
- IEC 60529, IP66
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
- Catalog #: G280416G050
- Catalog #: A60P36F1
- Catalog #: A60P36F1G
- Catalog #: A60P36F2
- Catalog #: A60P36F2G
- Catalog #: A72FSHDPS
Hoffman On Demand Alternatives
- Catalog #: A72H3724FS3PT
- Catalog #: A72H3124FS3PT
- Catalog #: A72H2518FS3PT
Specifications
| Height | 72.06 in / 1830 mm |
|---|---|
| Width | 37.06 in / 941 mm |
| Depth | 24.06 in / 611 mm |
| Protection Rating | NEMA Type 4; NEMA Type 12; NEMA Type 3R; NEMA Type 3; IP66 |
| Material | Mild Steel |
| Rack Units | 35 |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 423 lb |
| BULLETIN NUMBER | A4L3 |
