Brand: Hoffman
|
SKU:
650017

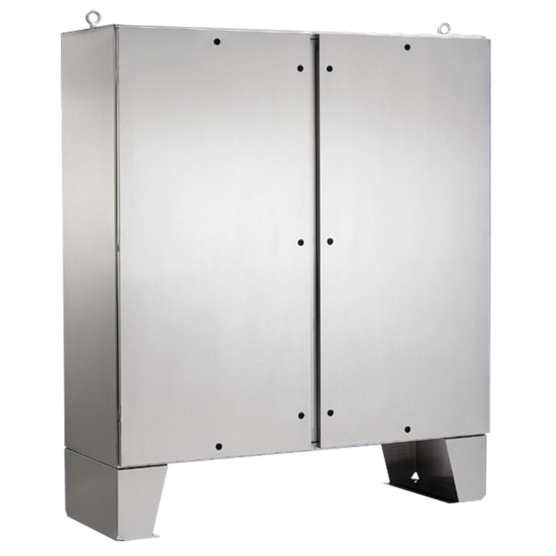

Hoffman A72H7224SSLPQT | Two-Door Floor Stand, Type 4x, 1/4 Turn Latches, 72x72x24, SS 304
Regular price
$32,825.60
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A72H7224SSLPQT | Two-Door Floor Stand, Type 4x, 1/4 Turn La...
Regular price
$32,825.60
Unit price
Description
Description
This two-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries.
Purchase panels separately.
Main Features
- Floor-standing enclosure with 1/4 turn latching
- Seams continuously welded and ground smooth
- Flange trough collar on all four sides of door openings
- Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
- Black die-cast quarter-turn latches with slotted insert provided on three sides of each door
- Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
- Bolt-on 12-in.-high stainless steel floor stands
- Heavy-duty Type 316L stainless steel lifting eyes
- Collar studs on inside of enclosure back for mounting optional panels
- Removable centerpost for easy panel installation
- Bonding provisions on doors; grounding studs on body
- Data pocket is high-impact plastic attached with pressure-sensitive adhesive
- No interior stiffeners to obstruct component mounting
- Accessory mounting channel provided in enclosure top
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC: Type 3R, 4, 4X, 12
- Number E61997
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AS050SS
- Catalog #: G280416G051
- Catalog #: A72P72
- Catalog #: A72P72G
- Catalog #: APWK116NFNM
- Catalog #: APWK138NFNM
- Catalog #: APWK138NFSS
- Catalog #: APWK1711NFSS
Specifications
| Height | 72.06 in / 1830 mm |
|---|---|
| Width | 72.06 in / 1830 mm |
| Depth | 24.06 in / 611 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Panel | A72P72 |
| Conductive Panel | A72P72G |
| Panel Size | 68.00 x 68.00 in / 1727 x 1727 mm |
| Latch Quantity | 10 |
| Body Thickness | 12 ga / 2.8 mm |
| Color | Unpainted |
| Door Thickness | 14 ga / 1.98 mm |
| BULLETIN NUMBER | A4S2 |
Documents and Downloads
Documents and Downloads
- Hoffman A72H7224SSLPQT CERT-00079
- Hoffman A72H7224SSLPQT Declaration of Compliance
- Hoffman A72H7224SSLPQT Enclosure Alterations
- Hoffman A72H7224SSLPQT Lockwasher and Hub Installation Instruction Manual
- Hoffman A72H7224SSLPQT Grounding Kit Instruction Manual
- Hoffman A72H7224SSLPQT Large Enclosure Handling Instructions
- Hoffman A72H7224SSLPQT Data Sheet
