Brand: Hoffman
|
SKU:
650018

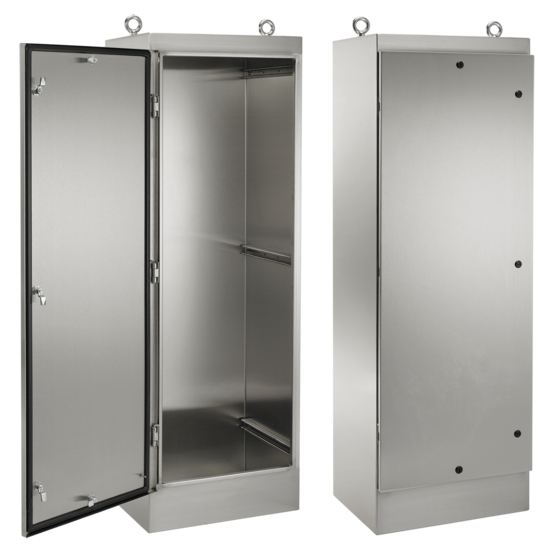

Hoffman A72HS2418SSLPQT | Single-Door Freestand, Type 4x, 1/4 Turn Latches, 72x24x18, SS 304
Regular price
$10,365.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A72HS2418SSLPQT | Single-Door Freestand, Type 4x, 1/4 Turn ...
Regular price
$10,365.41
Unit price
Description
Description
This single-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the pharmaceutical, food and beverage, packaging, water, petroleum and chemical processing industries.
Enclosures have 12 gauge backs
Main Features
- Freestanding enclosure with quarter turn latching
- Seams continuously welded and ground smooth
- Flange trough collar on all four sides of door openings
- Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
- Black die-cast quarter-turn latches with slotted insert provided on three sides of door
- Concealed stainless steel hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
- Heavy-duty Type 316L stainless steel lifting eyes
- Internal accessory mounting channels welded horizontally to sides at top, bottom and center
- High-impact plastic Data Pocket kit, attached with pressure-sensitive adhesive, is included with enclosure
- Bonding provision on door; grounding stud on body
- Accessory mounting channel provided in enclosure top
Specifications
Specifications
Industry Standards
- UL508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC: Type 3R, 4, 4X, 12
- IEC 60529, IP66
- Meets NEMA Type 3RX
Related Accessories
- Catalog #: AS050SS
- Catalog #: G280416G051
- Catalog #: A60P24F1
- Catalog #: A60P24F1G
- Catalog #: A60P24F2
- Catalog #: A60P24F2G
- Catalog #: A72P24F1
- Catalog #: A72P24F1G
Specifications
| Height | 72.06 in / 1830 mm |
|---|---|
| Width | 24.06 in / 611 mm |
| Depth | 18.06 in / 459 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Panel | A72P24F1 |
| Conductive Panel | A72P24F1G |
| Panel Size | 60.00 x 20.00 in / 1524 x 508 mm |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 14 ga / 1.98 mm |
| Weight | 214 lb |
| BULLETIN NUMBER | A4S2 |
Documents and Downloads
Documents and Downloads
- Hoffman A72HS2418SSLPQT Data Sheet
- Hoffman A72HS2418SSLPQT CERT-00079
- Hoffman A72HS2418SSLPQT EU Declaration of Conformity, Type 4X Stainless Steel Industrial Control Enclosures
- Hoffman A72HS2418SSLPQT Declaration of Compliance
- Hoffman A72HS2418SSLPQT Lockwasher and Hub Installation Instruction Manual
- Hoffman A72HS2418SSLPQT Large Enclosure Handling Instructions
