Brand: Hoffman
|
SKU:
650026

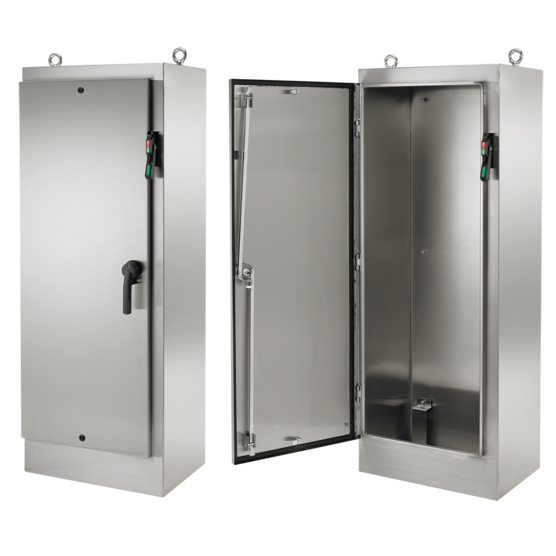

Hoffman A72HXS2718SSLPQT | Freestand Disconnect, Quarter-Turn and 3pt Latch, 4X, 72x26x18, SS 304
Regular price
$11,491.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A72HXS2718SSLPQT | Freestand Disconnect, Quarter-Turn and 3...
Regular price
$11,491.31
Unit price
Description
Description
This single door, stainless steel, disconnect enabled enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the pharmaceutical, food and beverage, packaging, water, petroleum and chemical processing industries.
Purchase panels separately.
Main Features
- Disconnect enabled enclosure is designed to house electronic controls
- Seams continuously welded and ground smooth
- Flange trough collar on all four sides of door openings
- Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
- Heavy-duty three-point latching mechanism on each door, operated by nVent HOFFMAN's black die-cast PowerGlide padlocking handle; back die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door
- Black Die-Cast PowerGlide handle has integral screwdriver defeater
- Collar studs on inside of enclosure back for optional mounting panels
- Concealed stainless steel hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
- Heavy-duty Type 316L stainless steel lifting eyes
- Bonding provision on door; grounding stud on body
- High-impact plastic Data Pocket kit included with enclosure
- Accessory mounting channel provided in enclosure
Specifications
Specifications
Industry Standards
- UL508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC: Type 3R, 4, 4X, 12
- IEC 60529, IP66
- Meets NEMA Type 3RX
Related Accessories
- Catalog #: AS050SS
- Catalog #: G280416G051
- Catalog #: A72PM28
- Catalog #: A72PM28G
- Catalog #: APWK116NFNM
- Catalog #: APWK138NFNM
- Catalog #: APWK138NFSS
- Catalog #: APWK1711NFSS
Specifications
| Height | 72.06 in / 1830 mm |
|---|---|
| Width | 26.5 in / 673 mm |
| Depth | 18.06 in / 459 mm |
| Protection Rating | NEMA Type 4X; NEMA Type 4; NEMA Type 3R; NEMA Type 12; IP66 |
| Material | Stainless Steel 304 |
| Panel | A72PM28 |
| Conductive Panel | A72PM28G |
| Panel Size | 60.00 x 21.75 in / 1524 x 552 mm |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 14 ga / 1.98 mm |
| Weight | 214 lb |
| BULLETIN NUMBER | A4S2 |
Documents and Downloads
Documents and Downloads
- Hoffman A72HXS2718SSLPQT CERT-00079
- Hoffman A72HXS2718SSLPQT Declaration of Compliance
- Hoffman A72HXS2718SSLPQT Enclosure Alterations
- Hoffman A72HXS2718SSLPQT Lockwasher and Hub Installation Instruction Manual
- Hoffman A72HXS2718SSLPQT Large Enclosure Handling Instructions
- Hoffman A72HXS2718SSLPQT Data Sheet
