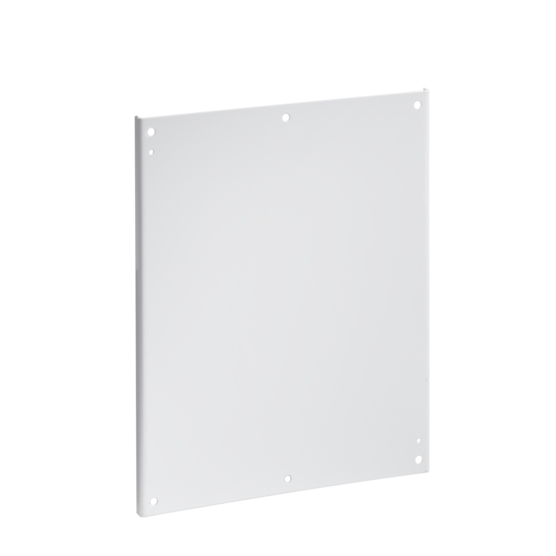

Hoffman A72P48F2 | Panel for Free-Stand with Mounting Channel, Half...
Description
Description
Panel for Free-Stand Single- and Dual-Access Two-Door Enclosures with Mounting Channel. Panels can be positioned anywhere along horizontal mounting channels (see Sections B-B for limitations). Half-length panels can be located in the upper or lower portion of the enclosure. Some assembly is required. Center support is furnished with each full-length or half-length panel for two-door enclosures. The center support attaches to the top and bottom mounting channels and can be positioned from front to back in the enclosure. The center support can be replaced with heavy duty panel supports to support panels when heavy equipment is installed.
Catalog numbers with B suffix include two painted panels bolted together, with top and bottom stiffeners for additional support.
Main Features
- Available in Full-Length and Half-Length
- Plated mounting hardware is provided
Specifications
Specifications
Hoffman On Demand Alternatives
- Catalog #: A90P72F1G
- Catalog #: A90P72F1
- Catalog #: A90P48F1G
- Catalog #: A90P48F1
- Catalog #: A72P72F1G
- Catalog #: A72P72F1
- Catalog #: A72P60F1G
- Catalog #: A72P60F1
Specifications
| Height | 30.88 in / 784 mm |
|---|---|
| Width | 44 in / 1118 mm |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | White |
| Thickness | 11 ga / 3.04 mm |
| Fits Enclosure | 72.00 x 48.00 in / 1829 x 1219 mm |
| Panel Size | 30.88 x 44.00 in / 784 x 1118 mm |
| Weight | 72.4 lb |
| BULLETIN NUMBER | PNL30 |
