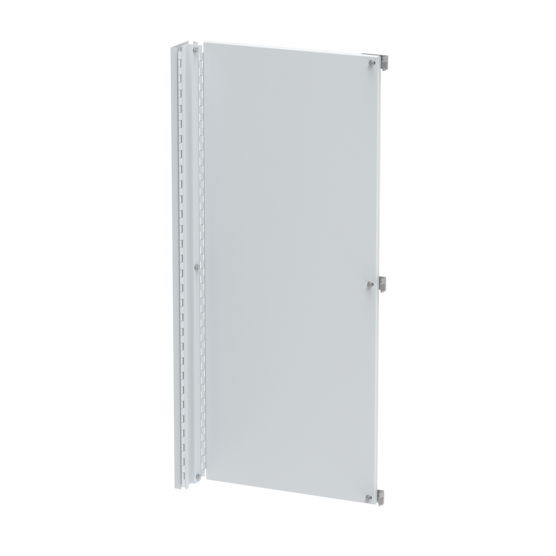

Hoffman A72SP30F4 | Swing-Out Panel for Free-Stand with Mounting Channel, Half, fits 72x30, White
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A72SP30F4 | Swing-Out Panel for Free-Stand with Mounting Ch...
Description
Description
Swing-Out Panels are designed for Free-Stand Enclosure with Mounting Channel. Full-length and half-length swing-out panels are available. Half-length panels can be located in the upper or lower portion of the enclosures. Swing-out panels have two heavy-gauge continuous hinges which permit the panel to swing completely out of the enclosure if it is located within approximately 10.75 in. (273 mm) of the door. These panels can be mounted on either side of the enclosure.
Main Features
- Panels are furnished with plated mounting hardware
Specifications
Specifications
Specifications
| Material | Mild Steel |
|---|---|
| Use With | A72H3124FS |
| Panel Size | 30.88 x 24.81 in / 784 x 630 mm |
| Fits Enclosure | 72.00 x 30.00 in / 1829 x 762 mm |
| Color | White |
| Finish | Powder Coated |
| Thickness | 12 ga / 2.66 mm |
| Weight | 50 lb |
| BULLETIN NUMBER | PNL30 |
Documents and Downloads
Documents and Downloads
