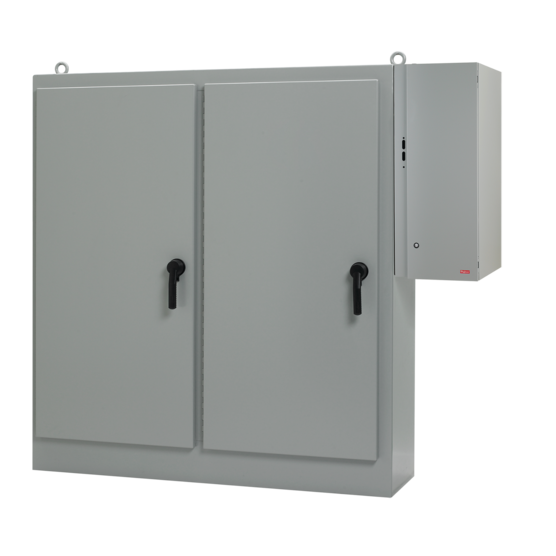

Hoffman A72XD6618FTCLP | Sequestr External Disconnect Package, Type 12, 72.12x66.50x18.12, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A72XD6618FTCLP | Sequestr External Disconnect Package, Type...
Description
Description
The Sequestr External Disconnect Enclosure Package helps mitigate arc flash occurrences when working on interior components by isolating incoming power from the main enclosure. Shipped as one unit for new installations, the disconnect switch and fuse block/circuit breaker are mounted in the external enclosure, with terminal connections to bring power to the main enclosure.
B dimension is large enclosure without External Disconnect Enclosure.
B2 dimension is overall size including External Disconnect Enclosure.
Purchase panels separately.
Note: Sequestr External Disconnect Enclosure is ANSI 61 gray inside and out.
Main Features
- Interlocks doors of main control cabinet when disconnect switch is powered ON
- Mechanical interlock on main control enclosure activated by master door prevents slave door from being opened first
- Provision for pass-through power into the main enclosure
- Preferred disconnect cutout
- Quarter-turn, screwdriver slot latch on Sequestr Enclosure
- Rugged PowerGlide Handle with three-point latch on main control enclosure
- Concealed, easy-to-remove hinges
- Grounding studs on body
- Bonding provision on door
- Conductive back panel included in Sequestr External Disconnect Enclosure
- Optional back panel for main control cabinet for maximum ordering flexibility
- Sequestr External Disconnect Enclosure is shipped unattached for easy disconnect installation
- A28X base enclosure
- A70D external disconnect enclosure
- External disconnect enclosure is 16 gauge (.060-inch); main control cabinet is 11 gauge (.121-inch)
- Continuously welded and ground seams all around
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchored into reinforced top
- Removable centerposts for easy back panel installation
- No disconnect cutout on main control cabinet
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA File No. 42186: Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: A31P12G
- Catalog #: ATBP100
- Catalog #: ATBP200
- Catalog #: ATBP3060
- Catalog #: APCABVA
- Catalog #: APCCHVA
- Catalog #: APCGETDA
- Catalog #: APCITE
Specifications
| Height | 72.12 in / 1832 mm |
|---|---|
| Width | 66.5 in / 1689 mm |
| Depth | 18.12 in / 460 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Panel Size | 60.00 x 60.00 in / 1524 x 1524 mm |
| Panel | A72PM66 |
| Stiffener Locations | 21.00 in / 533 mm |
| Finish | Powder Coated |
| Thickness | 16 ga / 1.52 mm |
| Weight | 781 lb |
| BULLETIN NUMBER | A28X2 |
Documents and Downloads
Documents and Downloads
- Hoffman A72XD6618FTCLP CERT-00058
- Hoffman A72XD6618FTCLP Declaration of Conformity, CSA Type 12
- Hoffman A72XD6618FTCLP CE-00016
- Hoffman A72XD6618FTCLP Sequestr External Disconnect Package, Type 12 Instruction Manual
- Hoffman A72XD6618FTCLP Large Enclosure Handling Instructions
- Hoffman A72XD6618FTCLP Data Sheet
