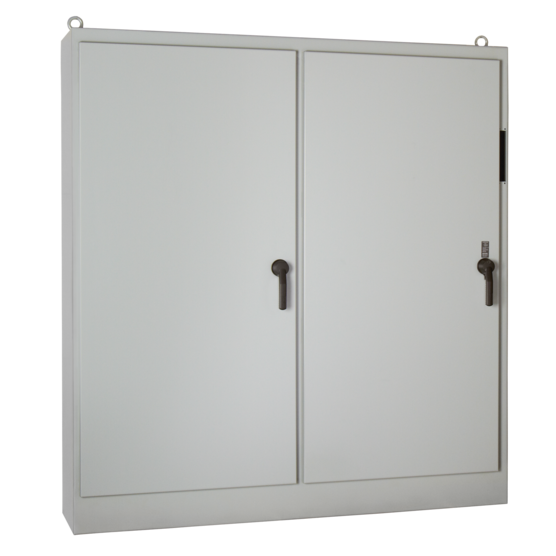

Hoffman A72XM3EQ18FTCLP | Heavy-Duty Disconnect Enclosure, Type 12, 72.12x100.75x18.12, LP
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A72XM3EQ18FTCLP | Heavy-Duty Disconnect Enclosure, Type 12,...
Description
Description
Simple, heavy-duty and cost-effective, this disconnect enclosure can be ordered with one to six doors to fit a range of applications.
All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a HOFFMAN platform assembly, catalog number ADSCPA, purchased separately. • ABB Controls flange-operated devices • Cutler-Hammer C361 devices • Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism • General Electric Type TDA devices (see next paragraph for option) • Square D Class 9422 devices (see next paragraph for option)
The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2. • For General Electric devices, order catalog number TDSR extended length drive rod • For Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.
Enclosures with panel include a painted panel. Order conductive panels separately.
Catalog weights and dimensions are careful estimates but not guaranteed.
Main Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Panel supports
- Data pocket is high-impact thermoplastic
- Oil-resistant gasket
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Mechanical interlock activated by master door prevents slave doors from being opened first; doors can be closed in any order
- Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
- Models available with panel included or panel sold separately
- FTC models include removable painted 10 gauge steel panels which mount on collar studs
- Includes door hardware
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA File No. 42186: Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: A72PM34
- Catalog #: A72PM34G
- Catalog #: A72PM66
- Catalog #: A72PM66G
- Catalog #: ABBLC
- Catalog #: ABBSC
- Catalog #: ABBSV
- Catalog #: ABF
Hoffman On Demand Alternatives
- Catalog #: A90XM7824FTCLP
- Catalog #: A90XM7818FTCLP
- Catalog #: A90XM4018FTCLP
- Catalog #: A84XM7818FTCLP
- Catalog #: A84XM4EW18FTCLP
- Catalog #: A84XM4024FTCLP
- Catalog #: A84XM4018FTCLP
- Catalog #: A84XM3EW18FTCLP
Specifications
| Height | 72.12 in / 1832 mm |
|---|---|
| Width | 100.75 in / 2559 mm |
| Depth | 18.12 in / 460 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| With or Without Panel | Without |
| Finish | Powder Coated |
| Thickness | 11 ga / 3.04 mm |
| Weight | 1067 lb |
| BULLETIN NUMBER | A28MM |
