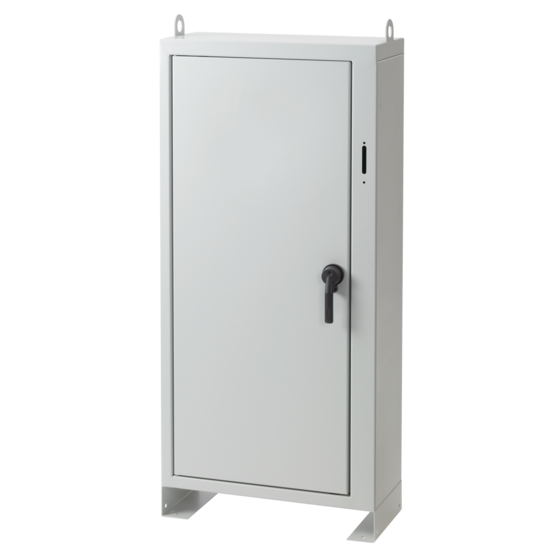

Hoffman A72XN7324FSLP | Free-Stand Disconnect Enclosure, Type 1, 72.00x73.00x24.00, Gray, Steel
Regular price
$6,664.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A72XN7324FSLP | Free-Stand Disconnect Enclosure, Type 1, 72...
Regular price
$6,664.88
Unit price
Description
Description
Free-Stand Disconnect Enclosures, Type 1, are an economical way to protect electrical and electronic equipment in applications that do not require extensive environmental protection.
Purchase panels separately.
Catalog weights and dimensions are careful estimates but not guaranteed.
Main Features
- 4-in. high 10 gauge steel integral lifting base
- Modified preferred disconnect cutout
- Heights from 60 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
- Sturdy 7 gauge lifting tabs
- Flush doors
- 3-point latch with heavy-duty handle
- Screwdriver defeater in handle on master door
- Padlock provision in handle
- Predrilled holes in lifting base provide bolt-down capability
- Bonding provision on each door
- Studs included for mounting optional panels on threaded bolts
- Optional rack angles mount to top and bottom of front flanges
Specifications
Specifications
Industry Standards
- UL508A Listed; Type 1; File No. E61997
- cUL Listed per CSA C22.2 No. 14; Type 1; File No. E61997
- NEMA/EEMAC Type 1
- IEC 60529 IP30
Related Accessories
- Catalog #: AS050
Specifications
| Height | 72 in / 1829 mm |
|---|---|
| Width | 73 in / 1854 mm |
| Depth | 24 in / 610 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Panel Size | 61.16 x 68.00 in / 1553 x 1727 mm |
| Panel | A61P68N |
| Use Rack Angle | ARA7219THG |
| Conductive Panel | A61P68NG |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Powder Coated |
| BULLETIN NUMBER | A38D |
