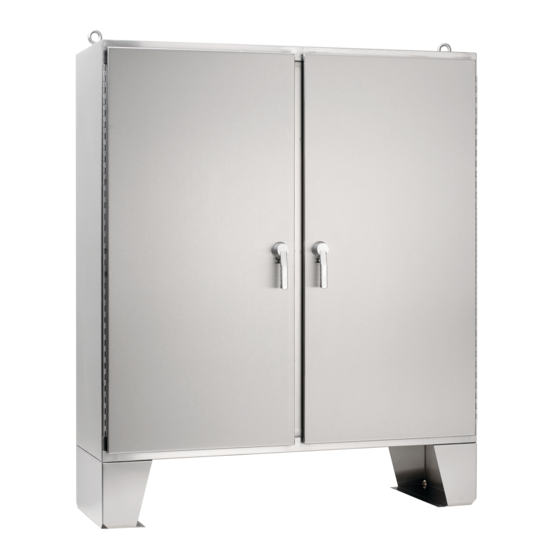

Hoffman A74H6018SSLP3PT | 2-Door Floor-Stand 3-Point Latches Type 4X, 74x60x18, SS Type 304
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A74H6018SSLP3PT | 2-Door Floor-Stand 3-Point Latches Type 4...
Description
Description
These two-door enclosures provide industry-leading protection for large components or complex mounting configurations in highly corrosive environments. Three-point latching with the HOFFMAN PowerGlide padlocking handles and a foam-in-place gasket combine convenience with security. They are well-suited for use in petrochemical plants; pulp and paper processing; water treatment facilities; and food, pharmaceutical and packaging applications.
Purchase panels separately.
Main Features
- Backs are 10 or 12 gauge stainless steel with x-form stiffeners
- Seams continuously welded and ground smooth; no holes or knockouts
- Removable centerpost for easy panel installation
- Collar studs provided for mounting optional panels
- Panel supports included
- Heavy-duty lifting eyes are Type 316L stainless steel
- Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handles
- Body flange trough collar excludes liquids and contaminants
- Heavy-duty stainless steel continuous hinges support each door
- Bonding provision on doors; grounding studs on body
- Accessory mounting channel provided in enclosure top
- Data pocket is high-impact thermoplastic
- 12-in. (305-mm) removable floor stands are bolted to enclosure
- Seamless foam-in-place one-piece gasket provides oil-tight and dust-tight seal against contaminants
- External hardware manufactured of Type 316 stainless steel
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA Type 3, 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: AS050SS
- Catalog #: G280416G051
- Catalog #: A72P60
- Catalog #: A72P60G
- Catalog #: APWK116NFNM
- Catalog #: APWK138NFNM
- Catalog #: APWK138NFSS
- Catalog #: APWK1711NFSS
Hoffman On Demand Alternatives
- Catalog #: A74H7224SSLP3PT
- Catalog #: A74H7218SSLP3PT
- Catalog #: A74H7212SSLP3PT
- Catalog #: A74H6018SSLP3PT
- Catalog #: A74H6012SSLP3PT
- Catalog #: A62H6018SSLP3PT
- Catalog #: A62H6012SSLP3PT
- Catalog #: A62H4818SSLP3PT
Specifications
| Height | 74.06 in / 1881 mm |
|---|---|
| Width | 60.06 in / 1526 mm |
| Depth | 18.06 in / 459 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Panel Size | 68.00 x 56.00 in / 1727 x 1422 mm |
| Conductive Panel | A72P60G |
| Panel | A72P60 |
| Stainless Steel Type | 304 |
| Color | Unpainted |
| Finish | Brushed #4 |
| Thickness | 12 ga / 2.78 mm |
| BULLETIN NUMBER | A4S3 |
Documents and Downloads
Documents and Downloads
- Hoffman A74H6018SSLP3PT Declaration of Compliance
- Hoffman A74H6018SSLP3PT Declaration of Conformity, Stainless Steel Two Door Enclosure
- Hoffman A74H6018SSLP3PT Lockwasher and Hub Installation Instruction Manual
- Hoffman A74H6018SSLP3PT Large Enclosure Handling Instructions
- Hoffman A74H6018SSLP3PT Enclosure Alterations
- Hoffman A74H6018SSLP3PT Data Sheet
