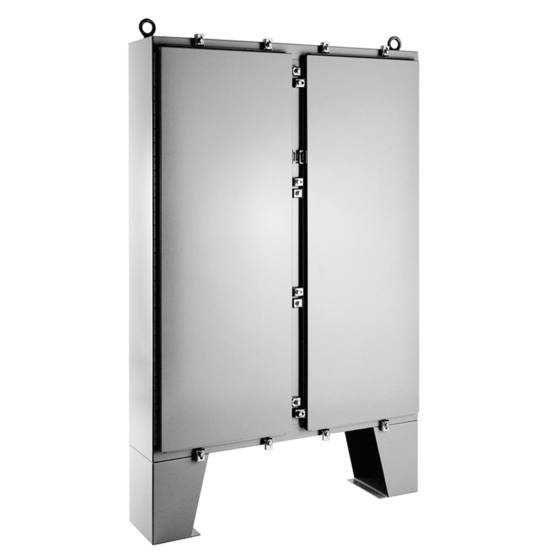

Hoffman A74H60DULP | Two-Door with Floor Stands, Type 4, 74.06x60.06x12.06, Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A74H60DULP | Two-Door with Floor Stands, Type 4, 74.06x60.0...
Description
Description
The Type 4 rating and polyester powder coating make these enclosures ideal for outdoor environments or food processing applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. Featuring a continuous hinge with clamps, the enclosures are supported by floor stands that provide additional height and access for cleaning under the enclosure. Equipment can be mounted on either panels or racks.
Order panels separately.
Main Features
- Seams continuously welded and ground smooth
- Body stiffeners for added strength
- Removable centerpost permits easy panel installation
- Panel supports
- Return flange around three sides of door and along top of enclosure opening channels away liquids and contaminants
- Stainless steel door clamps on three sides of each door assure water-tight seal
- Heavy gauge continuous hinge with stainless steel hinge pin
- Hasp and staple for padlock
- Data pocket is high-impact thermoplastic
- 12-in. floor stands welded to enclosure
- Heavy-duty lifting eyes
- Oil-resistant door gasket
- Collar studs provided for mounting optional panels
- Grounding stud on body
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997
- NEMA/EEMAC Type 3, Type 4, 12, 13
- CSA, File No. LR42186, Type 4, 12
- IEC 60529, IP66
Related Accessories
- Catalog #: AS050
- Catalog #: N280416G050
- Catalog #: A72P60
- Catalog #: A72P60G
- Catalog #: AFT44XSS
- Catalog #: APWK116NFNM
- Catalog #: APWK133NF
- Catalog #: APWK138NF
Specifications
| Height | 74.06 in / 1881 mm |
|---|---|
| Width | 60.06 in / 1526 mm |
| Depth | 12.06 in / 306 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 3; IP66 |
| Panel | A72P60 |
| Conductive Panel | A72P60G |
| Panel Size | 21.00 in / 533 mm |
| Body Stiffener | 21 in / 533 mm |
| Clamp Quantity | 18 |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| BULLETIN NUMBER | A4L |
Documents and Downloads
Documents and Downloads
- Hoffman A74H60DULP Declaration of Compliance
- Hoffman A74H60DULP EU Declaration of Conformity - Type 4/4X Industrial Control Enclosures
- Hoffman A74H60DULP CERT-00075
- Hoffman A74H60DULP Single-Sided Shelf Repainting Instructions
- Hoffman A74H60DULP Large Enclosure Handling Instructions
- Hoffman A74H60DULP Data Sheet
