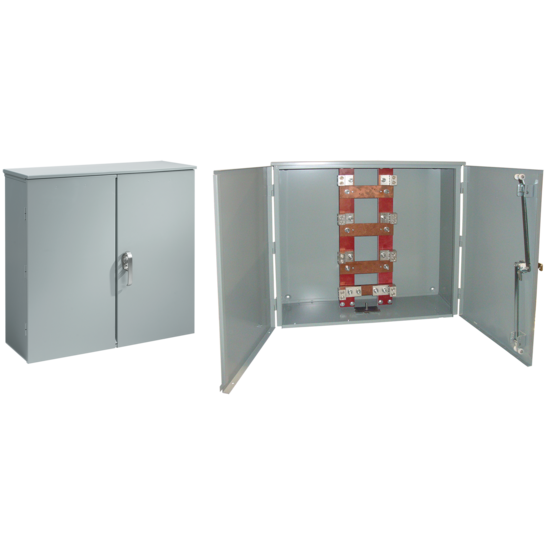

Hoffman A800HCT1R | CT Cabinet, 400-800 Amp, 35.77x35.8x11.00, Gray, Steel
Regular price
$2,931.16
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A800HCT1R | CT Cabinet, 400-800 Amp, 35.77x35.8x11.00, Gray...
Regular price
$2,931.16
Unit price
Description
Description
CT Cabinet, 400-800 Amp, Type 3R (for Window-Type Current Transformers) provide Type 3R protection and a factory-installed wiring buss for 400-800 Amp, 600 VAC current transformers. The assembly has a 50 k AIC rating.
Main Features
- Overlapping double-door model with 3-point latch and lift-off hinges
- Door stop provision included
- Includes padlock provisions in handle
- Mild steel hinges
- Use with window-type current transformer
- Drip-shield top and seam-free sides, front and back
- Three removable copper buss bars
- Buss bar cross section 3.00 in. x .25 in. (76 mm x 6 mm)
- Neutral bar
- Aluminum mechanical lugs dual rated (Cu/Al), two conductor
- Maximum conductor size 600 kcmil
- Insulating bar mounting bracket, 12-gauge painted steel
- Mounting holes on back of enclosure
- No gasketing or knockouts
- No gasketing or knockouts Ground stud provided
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 414 Listed; Type 3R; File No. E240312
- UL 50, 50E Listed; Type 3R; File No. E27525
- cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
- NEMA Type 3R
- IEC 60529, IP32
Related Accessories
- Catalog #: APWK53NF
- Catalog #: AS050
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 36 in / 914 mm |
| Depth | 11 in / 279 mm |
| Protection Rating | NEMA Type 3R |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 12 ga / 2.66 mm |
| Door Thickness | 14 ga / 1.9 mm |
| Style | Hinged double-door |
| Weight | 171 lb |
| BULLETIN NUMBER | A90CT |
