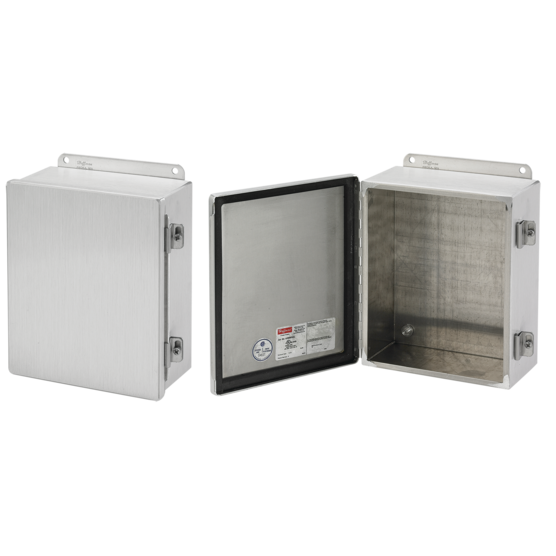

Hoffman A8064CHAL | Continuous Hinge with Clamps Type 12, 8.00x6.00...
Regular price
$544.19
Unit price
Brand: Hoffman
|
SKU:
650216
Regular price
$544.19
Unit price
Description
Description
The Continuous Hinge Aluminum Enclosure with Clamps is a lightweight enclosure solution that features a hinged cover that secures on the side opposite the hinge via stainless steel clamps and screws. This enclosure is ideal for protecting components and controls in indoor applications, and maintains a Type-12 rating.
Purchase panels separately
Optional aluminum panels are unpainted, or steel panels are painted white; conductive and stainless panels are also available for most sizes.
Main Features
- Lightweight, Type 12 hinged enclosure.
- Seams continuously welded and ground smooth
- Stainless steel screws and clamps secure cover
- Cover removed by pulling stainless steel continuous hinge pin
- Oil-resistant gasket
- Weldnuts furnished for mounting optional panels and terminal block kits
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 12, 13; File No. E27567
- cUL Listed per CSA C22.2 No 94; Type 12, 13; File No. E27567
- NEMA/EEMAC Type 12, 13
- CSA File No. 42184: Type 12
- IEC 60529, IP65
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: A8P6
- Catalog #: A8P6AL
- Catalog #: A8P6C
- Catalog #: A8P6G
- Catalog #: A8P6SS
- Catalog #: AL23SS
- Catalog #: APLKJIC6SS
- Catalog #: AL18
Specifications
| Height | 8 in / 203 mm |
|---|---|
| Width | 6 in / 152 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 12; IP65 |
| Material | Aluminum |
| Panel Size | 6.75 x 4.88 in / 171 x 124 mm |
| Conductive Panel | A8P6G |
| Overall Dimensions | 9.50 x 6.94 in / 241 x 176 mm |
| Aluminum Panel | A8P6AL |
| Steel Panel | A8P6 |
| Mounting | 8.75 x 4.00 in / 222 x 102 mm |
| Color | Unpainted |
| BULLETIN NUMBER | A51A |
