Brand: Hoffman
|
SKU:
10306167

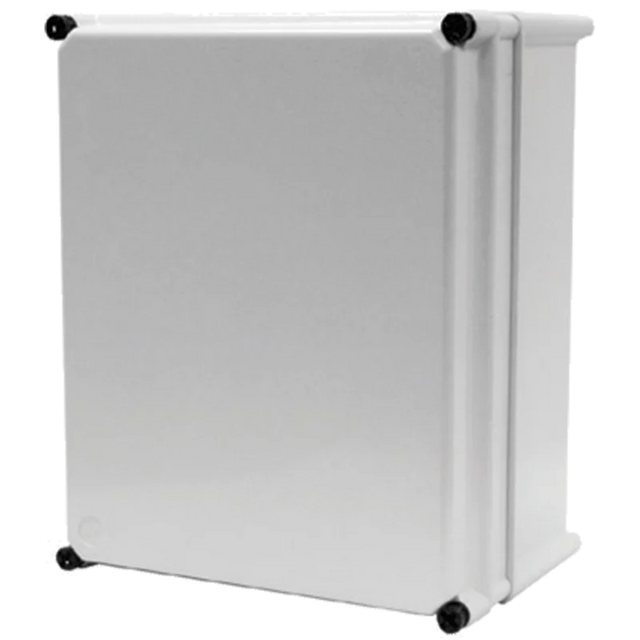

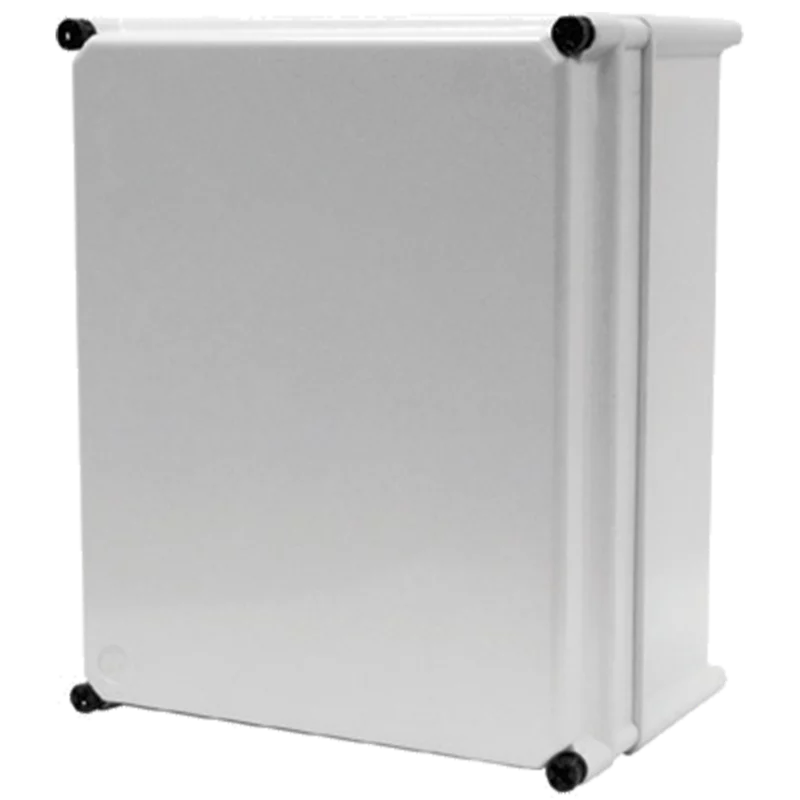

Hoffman A81-2212E2 | APO Flat Opaque Screw Cover with Extension Type 4X, 21.97x23.74x11.65, Lt Gray, Fiberglass, E2
Regular price
$1,208.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A81-2212E2 | APO Flat Opaque Screw Cover with Extension Typ...
Regular price
$1,208.66
Unit price
Description
Description
Hoffman A81-2212E2 | APO Flat Opaque Screw Cover with Extension Type 4X, 21.97x23.74x11.65, Lt Gray, Fiberglass, E2
APO enclosures with Extensions are designed for use as insulated electrical junction boxes, terminal wiring boxes, instrument housings and electrical control enclosures in highly corrosive environments.
Hoffman - A81-2212E2 - Features
- Available sized from 7x6 (178x152mm) to 24x24 (610x610mm)
- Enclosures are maintenance free and corrosion resistant
- Bases and covers are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures up to 158°F (70°C) and momentary exposure to 302°F (150°C)
- All enclosures can be easily modified to customer specifications
- Gaskets are made from continuously poured polyurethane foam
- Brass M4 threaded inserts are factory installed for mounting plate attachment
- 4 to 6 bosses suitable for M6 threaded inserts are molded into the base (dependant on enclosure size).
- Maintain UL / CSA Type 4x with up to 5 extension collars
- Extensions allow deeper enclosure depths
- BULLETIN NUMBER: AP1
- Industry Standards:
- UL Listed Types 3, 3R, 4, 4X, 12, 13
- CSA 3, 3R, 4, 4X, 12, 13
Specifications
Specifications
Hoffman - A81-2212E2 - Product Categories
- Industrial
- Wall Mounted Industrial Enclosures
- Fiberglass and Thermoplastic Wall Mounted Industrial Enclosures
Hoffman - A81-2212E2 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | A81-2212E2 |
| Item Description | APO Flat Opaque Screw Cover with Extension Type 4X, 21.97x23.74x11.65, Lt Gray, Fiberglass, E2 |
| Style | Opaque cover and non-metallic corner screws, two extension collars |
| Height | 21.97 in / 558 mm |
| Width | 23.74 in / 603 mm |
| Depth | 11.65 in / 296 mm |
| Protection Rating | NEMA Type 3; NEMA Type 3R; NEMA Type 4; NEMA Type 4X; NEMA Type 12; NEMA Type 13; IP67; IK10 |
| Material | Fiberglass |
| Finish | Smooth Matte |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Weight | 12.5 lb |
