Hoffman A845JFGR | Screw-Cover-Quick-Release-Latch
Regular price
$251.84
Unit price
Brand: Hoffman
|
SKU:
4010253-JBT
Regular price
$251.84
Unit price
Description
Description

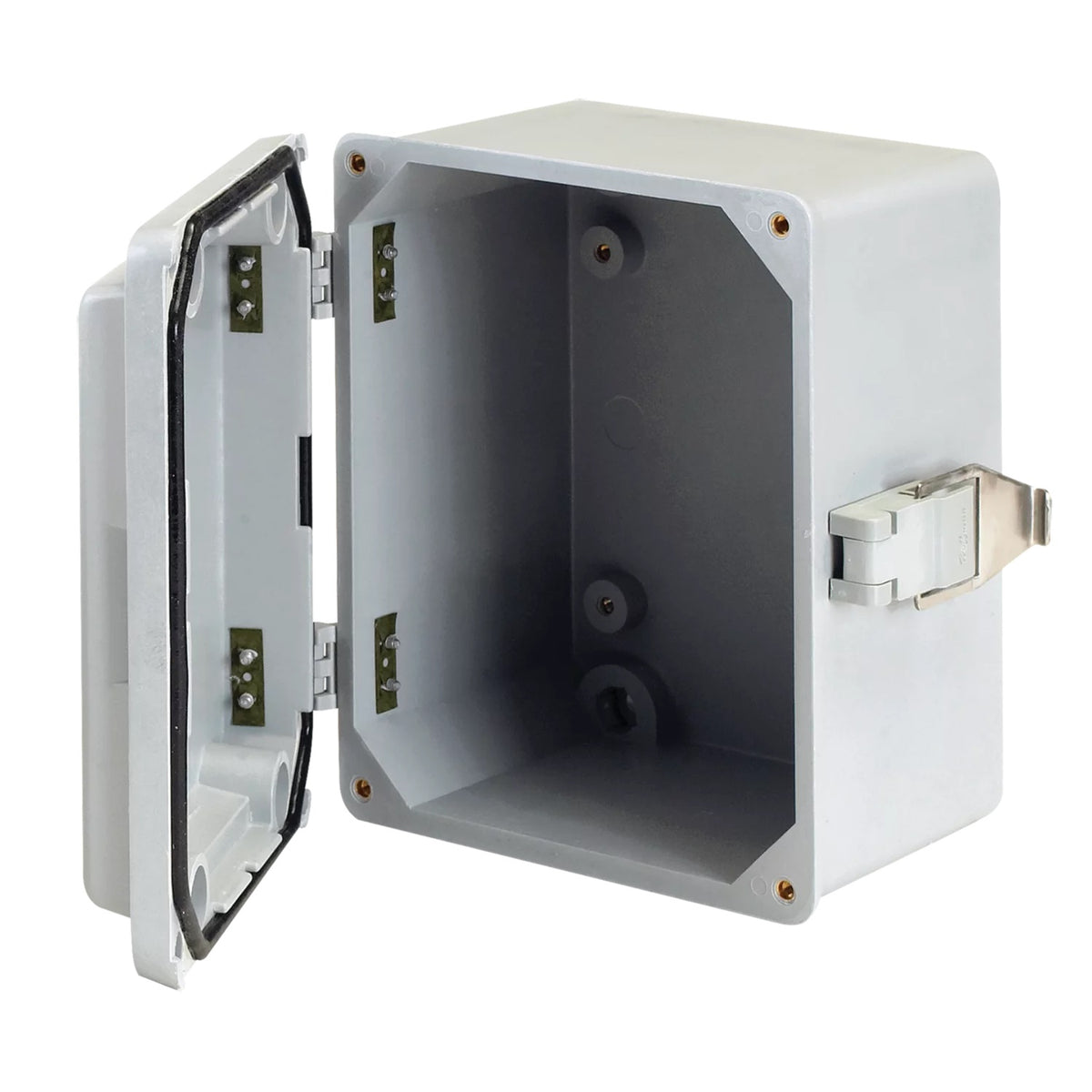

Hoffman A845JFGR | Screw-Cover-Quick-Release-Latch
Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.
Hoffman - A845JFGR - Features
- Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
- Fiberglass material is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Threaded internal bosses provided for mounting optional panels and terminal block kits
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
- Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
- A Type 316L stainless steel padlock hasp is furnished with each enclosure
- Sealing washers are furnished with enclosure
Specifications
Specifications
Hoffman - A845JFGR - Specifications
| Article Number | 41140 |
|---|---|
| Color Code | RAL 7035 |
| Thickness (T) | 0.15 in |
| Cover Style | Solid Cover |
| Height (H) | 8 in |
| Width (W) | 4 in |
| Depth (D) | 5 in |
| Material | Fiberglass |
| Latch Type | Screws |
| Finish | Smooth Matte |
| Color | Light Gray |
| Panel Size (D x E) | 4.88 x 2.88 in |
| Aluminum Panel | A6P4AL |
| Inside Dimensions (A x B x C) | 7.50 x 4.00 x 4.94 in |
| Steel Panel | A6P4 |
| Mounting (G x H) | 6.75 x 2.00 in |
