Hoffman A84XD3EW18SSFTCLP | Sequestr, External Disconnect Package, ...
Description
Description

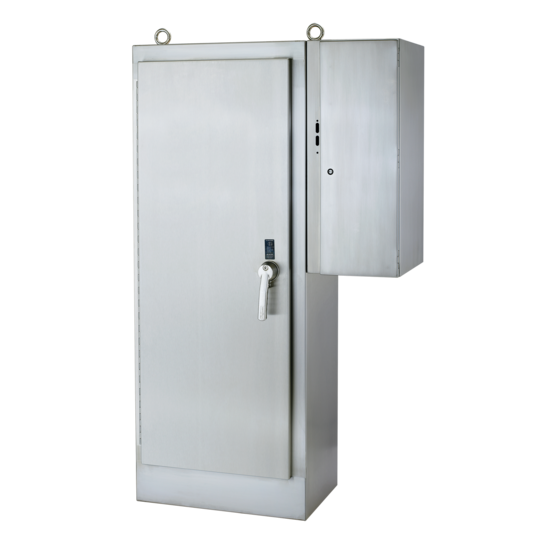

The Stainless Steel Sequestr External Disconnect Enclosure package helps mitigate arc flash occurrences when working on interior components by isolating incoming power from the main enclosure. Manufactured from 304 stainless steel, it provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. A package includes a main enclosure and a Sequestr box. Sequestr boxes can be ordered separately to retrofit existing enclosures. The disconnect switch and fuse block/circuit breaker are mounted in the external enclosures, with terminal connections to bring power to the main enclosure.
B dimension is large enclosure without External Disconnect Enclosure.
B2 dimension is overall size including External Disconnect Enclosure.
Purchase panels separately.
Main Features
- Package includes a main enclosure and a Sequestr box.
- Main enclosure 12 gauge Type 304 stainless steel
- Sequestr enclosure is 14 gauge Type 304 stainless steel
- Seams continuously welded and ground smooth
- Interlocks doors of main control cabinet when disconnect switch is powered ON
- Mechanical interlock on main control enclosure activated by master door, preventing slave door from being opened first
- Provision for pass-through power into the main enclosure
- Preferred Disconnect cutout
- Quarter-turn, screwdriver slot latch on Sequestr Enclosure
- Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors
- Concealed, easy-to-remove hinges
- Grounding studs on body
- Bonding provision on door
- Conductive back panel included in Sequestr External Disconnect Enclosure
- Optional back panel for main control cabinet for maximum ordering flexibility
- Sequestr External Disconnect Enclosure is shipped unattached for easy disconnect installation
Specifications
Specifications
Industry Standards
- UL 508A Listed 508; Type 3R, 4, 4X, 12; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997
- NEMA/EEMAC Type 3R, Type 4, 4X, 12
- CSA File No. 42186: Type 4, 4X, 12
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Related Accessories
- Catalog #: A31P12G
- Catalog #: ATBP100
- Catalog #: ATBP200
- Catalog #: ATBP3060
- Catalog #: APCABVA
- Catalog #: APCCHVA
- Catalog #: APCGETDA
- Catalog #: APCITE
Specifications
| Height | 84.12 in / 2137 mm |
|---|---|
| Width | 118.75 in / 3016 mm |
| Depth | 18.12 in / 460 mm |
| Protection Rating | NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3R; IP66 |
| Material | Stainless Steel 304 |
| Small Panel | A84PM40 |
| Large Panel | A84PM78 |
| Large Conductive Panel | A784PM78G |
| Small Conductive Panel | A84PM40G |
| Large Panel Size | 72.00 x 72.00 in / 1829 x 1829 mm |
| Small Panel Size | 72.00 x 33.75 in / 1829 x 857 mm |
| Color | Unpainted |
| BULLETIN NUMBER | A28SX |
Documents and Downloads
Documents and Downloads
- Hoffman A84XD3EW18SSFTCLP Declaration of Conformity, CSA Type 12
- Hoffman A84XD3EW18SSFTCLP CERT-00057
- Hoffman A84XD3EW18SSFTCLP Declaration of Compliance
- Hoffman A84XD3EW18SSFTCLP Sequestr External Disconnect Package, Type 12 Instruction Manual
- Hoffman A84XD3EW18SSFTCLP Lockwasher and Hub Installation Instruction Manual
- Hoffman A84XD3EW18SSFTCLP Large Enclosure Handling Instructions
- Hoffman A84XD3EW18SSFTCLP Data Sheet
