Brand: Hoffman
|
SKU:
650287

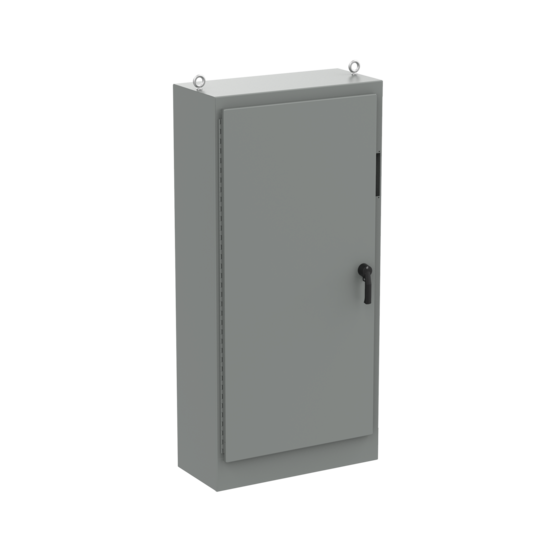

Hoffman A84XM4018FTCLP4 | Free-Stand Disconnect with Quick-Release Hinge, Type 4, 84.12 x 40.25 x 18.12
Regular price
$7,078.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A84XM4018FTCLP4 | Free-Stand Disconnect with Quick-Release ...
Regular price
$7,078.51
Unit price
Description
Description
Simple, heavy-duty and cost-effective with easy door removal and re-installation, this disconnect enclosure can be ordered with one to three doors to fit a range of indoor and outdoor applications
Purchase panels separately.
Catalog weights and dimensions are careful estimates but not guaranteed.
Main Features
- Quick-release continuous hinge
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Removable centerposts permit easy panel installation
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Ends of latch rods have rollers for easier door closing
- Panel supports
- Data pocket is high-impact thermoplastic
- Oil-resistant gasket
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Mechanical interlock activated by master door prevents slave doors from being opened first; doors can be closed in any order
- Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
- Models do not include panels. Painted or conductive panels sold separately.
- Includes door hardware
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 12, 3R; File No. E61997
- cUL Listed per CSA C22.2 No. 94; Type 4, 12, 3R; File No. E61997
- NEMA/EEMAC Type 4, 12, 3R
- IEC 60529, IP66
Related Accessories
- Catalog #: A84PM40
- Catalog #: A84PM40G
- Catalog #: APWK1212H
- Catalog #: APWK133NF
- Catalog #: APWK138NF
- Catalog #: APWK1612H
- Catalog #: APWK1711NF
- Catalog #: APWK175NF
Hoffman On Demand Alternatives
- Catalog #: A72XM5418FTCLP4
- Catalog #: A72XM3418FTCLP4
Specifications
| Height | 84.12 in / 2137 mm |
|---|---|
| Width | 40.25 in / 1022 mm |
| Depth | 18.12 in / 460 mm |
| Protection Rating | NEMA Type 4; NEMA Type 12; NEMA Type 3R; IP66 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 11 ga / 3.04 mm |
| Painted Panel | A84PM40 |
| Conductive Panel | A84PM40G |
| Weight | 498 lb |
| BULLETIN NUMBER | A4L3D |
