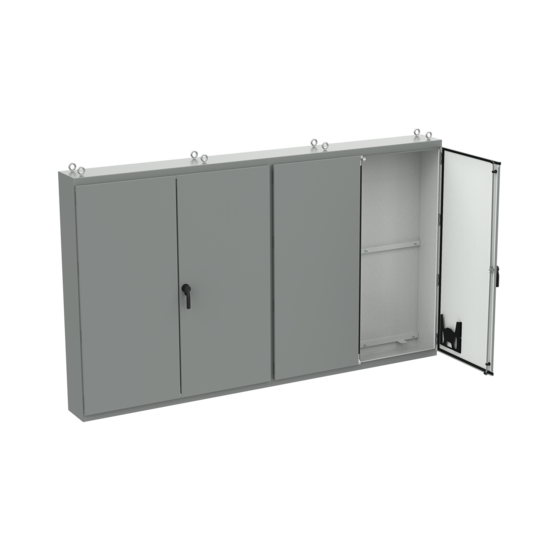

Hoffman A86M4ELP | Free-Stand, Multi-Door, Type 12, 86.12x149.19x14.12, Steel LP
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
Enclosures are available with three, four or five doors for housing larger control systems in industrial environments where mechanical interlock is required
Order panels separately.
Features and Benefits
- Seams continuously welded and ground smooth; no holes or knockouts
- Heavy steel back stiffeners maintain flatness and increase rigidity
- Heavy-duty lifting eyes anchored into reinforced top
- Overlapping, gasketed openings on two-door centerposts
- At two-door openings, gasketed overlapping doors eliminate need for centerposts
- Three-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
- Large data pocket is high-impact thermoplastic
- Oil-resistant door gasket
- Panel mounting studs
- Bonding provision on doors
- Provisions for mounting fluorescent lights
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 12; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997
- NEMA/EEMAC Type 12
- CSA, File No. 42186, Type 12
- IEC 60529, IP55
Related Accessories
- Catalog #: AS050
- Catalog #: N280416G050
Specifications
| Height | 86.12 in / 2187 mm |
|---|---|
| Width | 149.19 in / 3789 mm |
| Depth | 14.12 in / 359 mm |
| Protection Rating | NEMA Type 12; IP55 |
| Material | Mild Steel |
| Door Quantity | 4 |
| Lifting Eye Quantity | 8 |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 11 ga / 3.04 mm |
| Weight | 1651 lb |
| BULLETIN NUMBER | A27 |
Documents and Downloads
Documents and Downloads
- Hoffman A86M4ELP Data Sheet
- Hoffman A86M4ELP Declaration of Compliance
- Hoffman A86M4ELP CE-00019
- Hoffman A86M4ELP CERT-00054
- Hoffman A86M4ELP Grounding Kit Instruction Manual
- Hoffman A86M4ELP Lockwasher and Hub Installation Instruction Manual
- Hoffman A86M4ELP Single-Sided Shelf Repainting Instructions
- Hoffman A86M4ELP Large Enclosure Handling Instructions
