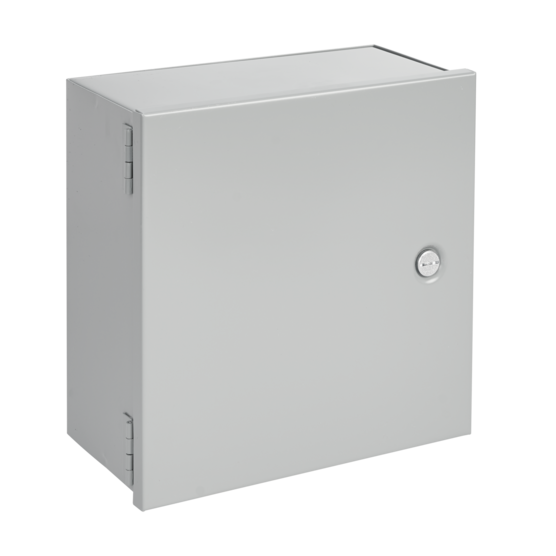

Hoffman A8N66 | Small, Type 1, 8.00x6.00x6.00, Gray, Steel
Regular price
$151.31
Unit price
Brand: Hoffman
|
SKU:
9885989
Regular price
$151.31
Unit price
Description
Description
Small Hinged-Cover, Type 1, have a size range of 6 x 6-in. to 14 x 12-in., mounting provision for optional panel and meet basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures.
Purchase panels separately.
Main Features
- Butt hinges on door
- Flush slotted latch operated with a screwdriver; optional latches available
- Weldnuts provided for mounting optional panels
- Butt hinges
- Mounting holes on back of enclosure
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 1; File No. E27567
- cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567
- NEMA/EEMAC Type 1
- CSA, File 42184: Type 1
- IEC 60529, IP30
Specifications
| Height | 8 in / 203 mm |
|---|---|
| Width | 6 in / 152 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 16 ga / 1.52 mm |
| Panel Size | 6.25 x 4.25 in / 159 x 108 mm |
| Panel | A8N6P |
| Perforated Panel | A8N6PP |
| BULLETIN NUMBER | A1SM |
Documents and Downloads
Documents and Downloads
- Hoffman A8N66 Data Sheet
- Hoffman A8N66 Declaration of Compliance
- Hoffman A8N66 EU Declaration of Conformity, Type 1 Industrial Control Enclosures
- Hoffman A8N66 CERT-00046
- Hoffman A8N66 Single-Sided Shelf Repainting Instructions
- Hoffman A8N66 Hinge-Cover, Small, Type 3R Instruction Manual
- Hoffman A8N66 Large, Type 1 Instruction Manual
