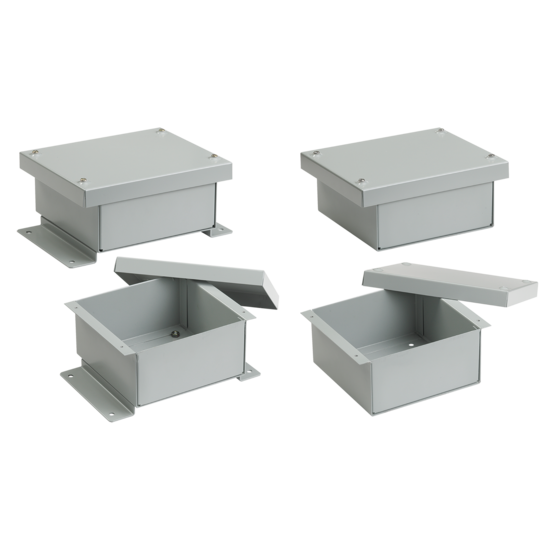

Hoffman A8R84HM | Horizontal-Mount, Type 3R, 8.00x8.00x4.00, Steel
Regular price
$94.35
Unit price
Brand: Hoffman
|
SKU:
446097
Regular price
$94.35
Unit price
Description
Description
Horizontal-Mount, Type 3R eliminates the need of a vertical mounting structure in applications such as such as rooftops or pads. It is used as a wiring, junction or pull box outdoor in outdoor applications that require protection from rain, sleet, snow or dripping water.
Main Features
- The screw cover is the drip shield providing 3/4-inch overhang on each side for outdoor protection
- No gasketing
- Screw locations on cover are embossed
- Enclosure body flange is formed outward
- Mounting holes on back for direct mounting through the back to strut or mounting surface; vertical structure for mounting not required
- Included mounting brackets provide a 1-inch clearance off surface for protection against pooling water
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 3R; File No. E27525
- cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
- Maintains Type 3R rating when mounted horizontally. Maintains Type 1 rating when mounted vertically.
- NEMA/EEMAC Type 3R
- IEC 60529, IP32
Specifications
| Height | 8 in / 203 mm |
|---|---|
| Width | 8 in / 203 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 16 ga / 1.52 mm |
| Weight | 8.6 lb |
| BULLETIN NUMBER | A90RH |
