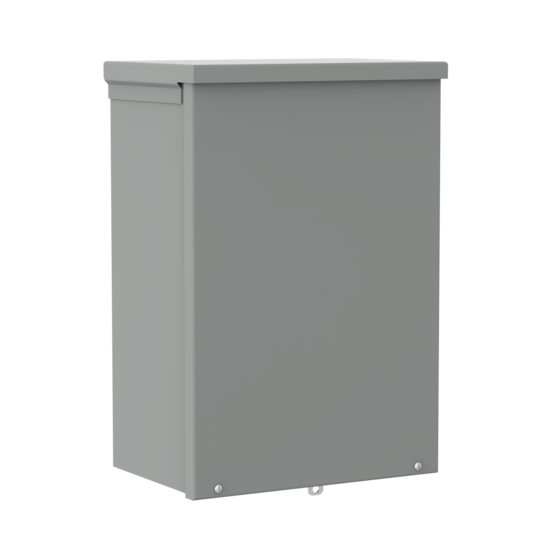

Hoffman A8R84NK | Screw-Cover Type 3R, 8.00x8.00x4.00, Gray, Steel
Description
Description
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water.
For the following items, the body top and bottom thickness is 16 gauge (1.6mm): A24R246(NK), A24R248(NK), A30R248(NK), A24R2410(NK), A30R2410.
For the following items, the body top thickness is 14 gauge (2.0mm) and the body bottom thickness is 16 gauge (1.6mm): A48R368(NK), A24R2412(NK), A30R3012(NK), A36R3012(NK), A36R3612(NK), A30R3016(NK), A48R3616(NK).
Specifications
Specifications
Specifications
| Height | 8 in / 203 mm |
|---|---|
| Width | 8 in / 203 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 16 ga / 1.52 mm |
| Door Thickness | 16 ga / 1.52 mm |
| Knockouts Included | No |
| Mounting | 2.25 in / 57 mm / 1.06 in / 27 mm |
| BULLETIN NUMBER | A90S3 |
Documents and Downloads
Documents and Downloads
- Hoffman A8R84NK Data Sheet
- Hoffman A8R84NK CERT-00115
- Hoffman A8R84NK Declaration of Compliance
- Hoffman A8R84NK CE-00074
- Hoffman A8R84NK Single-Sided Shelf Repainting Instructions
- Hoffman A8R84NK Current Transformer Cabinets, 400-800 Amp, Type 3R Instruction Manual
- Hoffman A8R84NK Padlock Hasp Kit Instruction Manual
- Hoffman A8R84NK Screw-Cover, Type 3R Spec Sheet
