Brand: Hoffman | SKU: 9885993

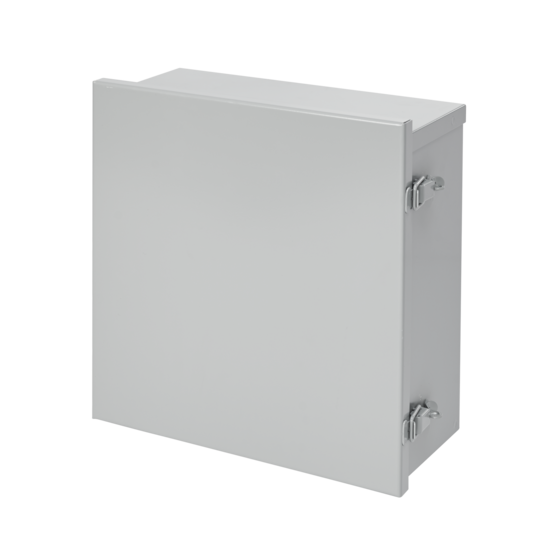

Hoffman A8R86HCLO | Hinge-Cover Lift-Off, Type 3R, 8.00x8.00x6.00, Steel

$136.05

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Drip-Shield Hinged Lift-Off Cover, Type 3R features a removable cover for easy mounting and access with padlock pull catch latches. It protects components in outdoor and other applications subject to rain, sleet, snow or dripping water.

Purchase panels separately

Panel Mounting Kit and Mounting Bracket Kit must be ordered separately. A Panel Mounting Kit is required to install panel.

Main Features

Drip-shield top and seam-free sides, front and back
Galvanized steel lift-off hinges with stainless steel pins
Provisions for padlocking on each draw pull catch
Embossed mounting holes on back of enclosure
Gasketing along top of door
No knockouts
Quick-release door latches
Enclosures are finished with paint over plated surfaces

Specifications

Industry Standards

UL 50, 50E Listed; Type 3R; File No. E27567
cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567
NEMA/EEMAC Type 3R
CSA, File 42184: Type 3R
IEC 60529, IP32

Specifications

Height	8 in / 203 mm
Width	8 in / 203 mm
Depth	6 in / 152 mm
Protection Rating	NEMA Type 3R; IP32
Material	Mild Steel
Finish	Galvanized; Powder Coated / Galvanized; Powder Coated
Color	Gray
Color Code	ANSI 61
Body Thickness	16 ga / 1.52 mm
Door Thickness	16 ga / 1.52 mm
Panel	A8P6
Panel Size	6.75 x 4.88 in / 171 x 124 mm
BULLETIN NUMBER	A3LO

Documents and Downloads

Hoffman A8R86HCLO Data Sheet
