Hoffman ADB275 | Rack-Mountable Fan Package, 275CFM, 115V, SS Type 304
Regular price
$1,510.17
Unit price
Description
Description

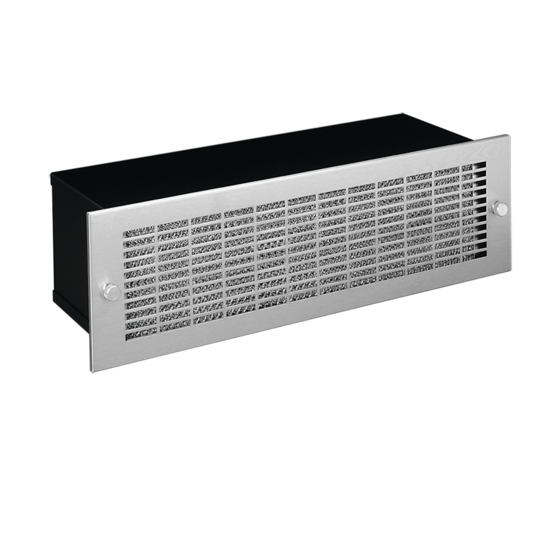

For enclosure or 19-inch rack applications, the Blower Fan Package provides the maximum amount of cooling air in the least amount of space by utilizing 115 volt AC, 60/50 hertz, single-phase input power.
Engineered for 20,000 hours of continuous operation when properly powered.
Main Features
- Intake grille is easily removed with two captive thumbnuts
- Washable aluminum filter
- Single phase motor powers the statically balanced blower
- Motor is thermally protected and cooled by incoming forced air
- Direct drive induction motor contains permanently lubricated ball bearings
- Lubricant protects from -20 F to 298 F (-29 C to 148 C)
- Rotating components are suspended on neoprene shock-mounts
- Three-conductor power cord (five feet long)
- The unit is self-supporting with 16 gauge steel flanges notched per EIA RS-310-D.
- An exhaust grille and filter package (catalog number AEXGR275) is required and must be ordered separately
- Grill is 20 gauge stainless steel 304 and the housing is 16 gauge mild steel
Specifications
Specifications
Industry Standards
- UL Component Recognized; File No. E61997
- EIA RS-310-D
- CSA certified
- (blower motor only)
Specifications
| Height | 5.75 in / 146.05 mm |
|---|---|
| Width | 19 in / 482.6 mm |
| Depth | 7.25 in / 184.15 mm |
| Airflow | 275 ft³/min / 467 m³/h |
| Nominal Voltage | 115 V |
| Voltage AC | 100 V |
| Max Current | 1.2 A |
| Operating Temperature | 298 °F max / 148 °C max |
| Material | Stainless Steel 304; Mild Steel |
| Color | Unpainted |
| Finish | Brushed |
| Thickness | 20 ga / 1 mm |
| BULLETIN NUMBER | D85 |
