Brand: Hoffman
|
SKU:
650578

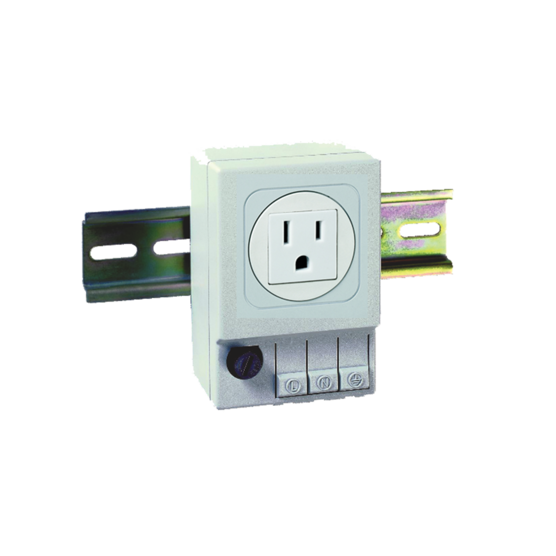

Hoffman ADINP120F | NEMA 5-15R DIN-Mounted Outlets, With fuse, 3.54x2.44x1.97, Lt Gray, Plastic
Regular price
$84.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman ADINP120F | NEMA 5-15R DIN-Mounted Outlets, With fuse, 3.54...
Regular price
$84.01
Unit price
Description
Description
The DIN rail-mounted NEMA 5-15P electrical receptacle can be quickly fitted and connected inside enclosures, allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with and without fuses.
Main Features
- Connection: three cage clamps for solid and stranded wire AWG 20-14 (0.5-2.5mm²)
- Housing: plastic, UL94 V-0, light grey
- Fuse: Type 5 x 20 mm dia. (Tubular)
- Integral mounting clip for 35mm DIN rail, EN 60 715
- Mounting position: vertical
- Operating / storage temperature -49 F to +158 F (-45 C to 70 C)
- Standard NEMA receptacle 5-15R
- Protection class I (grounded)
Specifications
Specifications
Industry Standards
- UL Component Recognized; File No. E222026
- cUL Component Recognized; File No. E222026
- Ingress protection: IP 20
Specifications
| Amp Rating | 6.3 A |
|---|---|
| Fused | Yes |
| Color | Light Gray |
| Finish | Smooth Matte |
| Material | Composite |
| Weight | 7.1 oz / 0.3 lb / 200 g |
| BULLETIN NUMBER | A80 |
