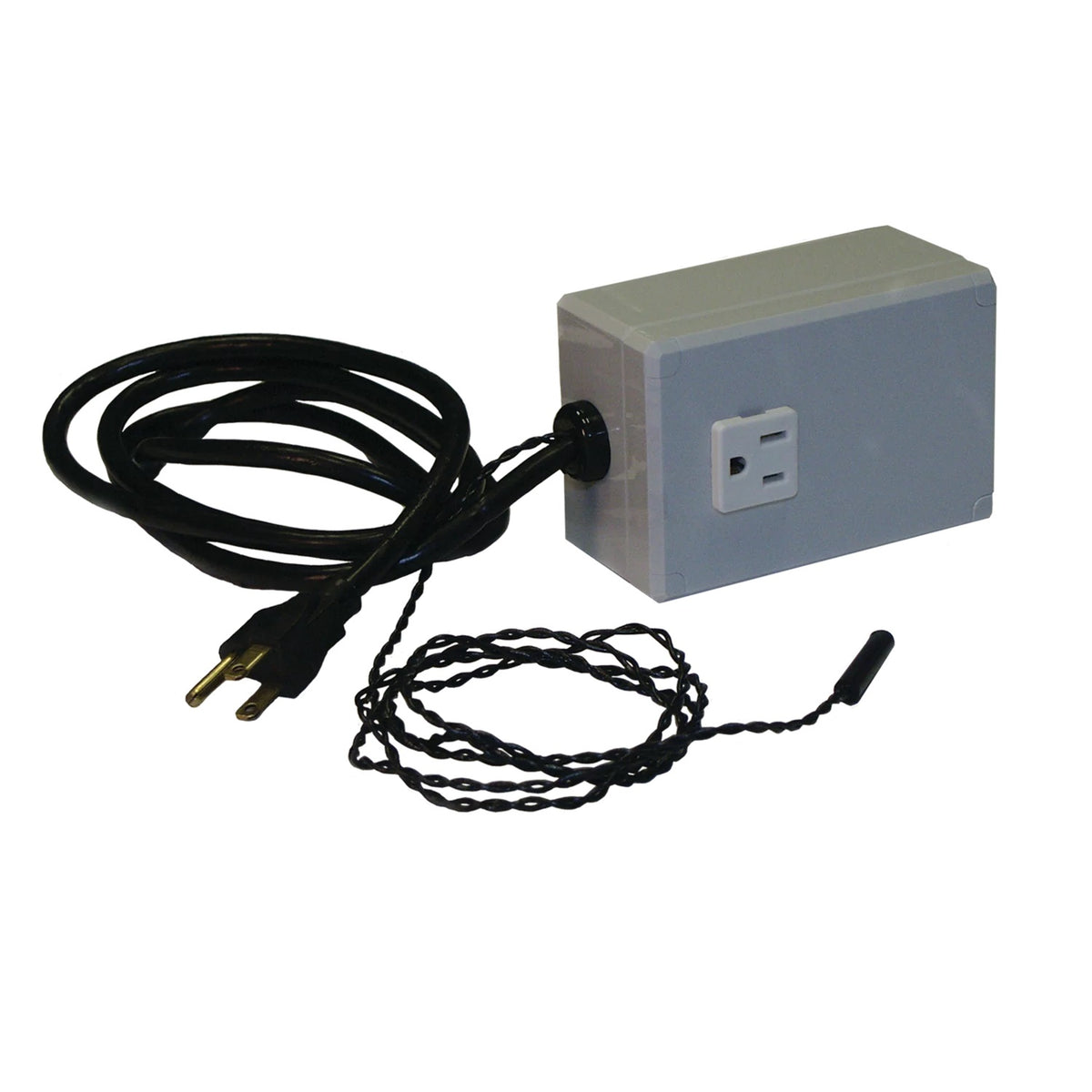

Hoffman AFANTSC | Panel-Mount-Fan-Speed-Controls
Regular price
$1,014.12
Unit price
Brand: Hoffman
|
SKU:
10418166
Regular price
$1,014.12
Unit price
Description
Description
Hoffman AFANTSC | Panel-Mount-Fan-Speed-Controls
Perfect for offices, classrooms and other noise-sensitive areas. Fan Speed Control optimizes airflow in a cabinet or rack, balancing air volume requirements with noise level and power use.
Hoffman - AFANTSC - Features
- Automatically adjusts fan speed depending on remote temperature sensor input
- Temperature set point is field adjustable; preset at 35 C (95 F)
- Idle speed and temperature slope are field-adjustable
- Push-to-reset thermal circuit breaker inside control housing
- Compact polycarbonate control housing can be mounted in any position
- NEMA 5-15R outlet provides power to fan
- Six-foot (1.83-m) power cord plugs into standard 120 V, 50 or 60 Hz outlet
- Remote temperature sensor with 10-ft. (3.05-m) lead mounts in airf
- low
- Mounting brackets included
Specifications
Specifications
Hoffman - AFANTSC - Specifications
| Article Number | 13857 |
|---|---|
| Height | 2.16 in |
| Voltage AC | 100 - 120 VAC |
| Weight | 1.2 lb |
| Width | 3.15 in |
| Depth | 4.72 in |
| Material | Polycarbonate |
| Finish | Smooth Gloss |
| UPC | 783510138578 |
| Color | Gray |
| Thickness | 0.1 in |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
