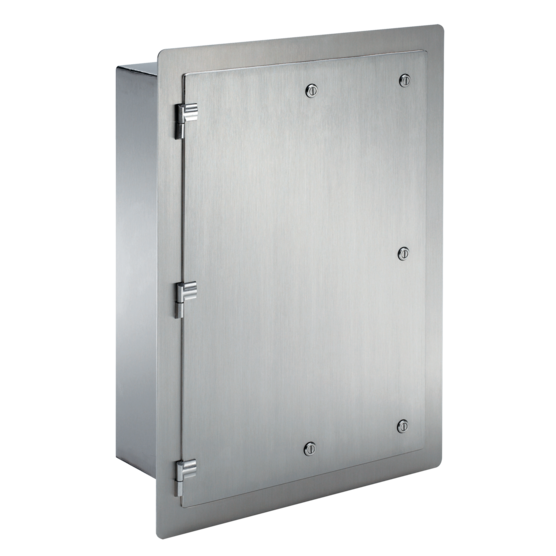

Hoffman AFM12126SS | PharmaPro, 304 SS Flush-mount, Hinged Cover, T...
Regular price
$4,663.44
Unit price
Brand: Hoffman
|
SKU:
650699
Regular price
$4,663.44
Unit price
Description
Description
PharmaPro Enclosures are specifically designed for the pharmaceutical industry with flush mounting and a low RA value finish that minimizes surface crevices for thorough wipe-downs and eliminates areas where contaminants can accumulate. The mounting system pulls the enclosure flush and tight to the wall and can be used on block or stud walls.
Main Features
- Specifically designed for pharmaceutical industry—flush mounting and flat surfaces eliminate areas where contaminants can accumulate
- Low RA value of PharmaPro finish minimizes surface crevices, allowing for a thorough wipe-down
- Enclosure does not protrude into the manufacturing area
- Mounting system included
- Mounting flange manufactured from 10 gauge Type 316L stainless steel
- Seams continuously welded and ground smooth
- Type 316L stainless steel lift-off hinges used with hinged door
- Type 316L stainless steel slotted oval-head fasteners used with screw cover
- Stainless steel quarter-turn latches used with hinged door
- FDA-approved silicone gasket
- Grounding stud on body; bonding provision on cover or door
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- NEMA/EEMAC Type 4, 4X, 12, 13
- IEC 60529, IP66
Related Accessories
- Catalog #: APWK53NFSS
- Catalog #: AS050SS
Specifications
| Height | 12 in / 305 mm |
|---|---|
| Width | 12 in / 305 mm |
| Depth | 6 in / 152 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Stainless Steel 316L |
| Panel | CP1212 |
| Latch Quantity | 2 |
| Mounting Cutout | 13.00 x 13.00 in / 330 x 330 mm |
| Body Thickness | 14 ga / 1.98 mm |
| Color | Unpainted |
| Door Thickness | 12 ga / 2.78 mm |
| Finish | 15-20 RA |
| BULLETIN NUMBER | A20S |
