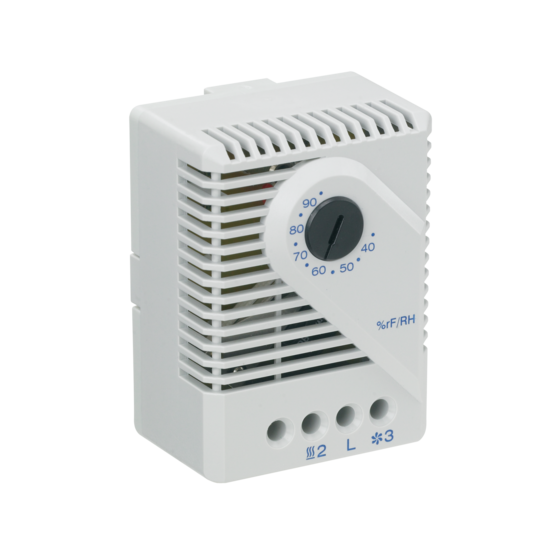

Hoffman AMHUM | Mechanical Hygrostat
Regular price
$680.26
Unit price
Brand: Hoffman
|
SKU:
650782
Regular price
$680.26
Unit price
Description
Description
The Mechanical Hygrostat controls relative air humidity inside an enclosure to prevent condensation and corrosion that can damage components. It can also be connected to an enclosure heater, cooling fans, warning lights or other devices. The critical relative humidity (RH) level for most components is 65 percent. Above 65 percent RH, condensation can form and cause electronic equipment to malfunction.
Main Features
- Adjustable relative humidity range
- High switching capacity
- Long service life (>100,000 cycles)
- Maximum permissible air velocity of 50 feet/sec. (15 m/s)
- Maximum switching voltage = 250 VAC 250 V should be switched only in a non-condensing environment
- Change-over contact
- Mounting clip for 35-mm DIN rail
- Connection is a 3-pole terminal for AWG 14 max. (2.5-mm squared)
- Contact resistance less than 10 m?
Specifications
Specifications
Industry Standards
- cURus; File No. E164102
- CE
Specifications
| Height | 2.64 in / 67.056 mm / 67 mm |
|---|---|
| Width | 1.97 in / 50.038 mm / 50 mm |
| Depth | 1.5 in / 38.1 mm / 38 mm |
| Material | Plastic |
| Voltage AC | 200 - 250 VAC |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Smooth Matte |
| Weight | 0.1 lb |
| BULLETIN NUMBER | D85 |
