Brand: Hoffman
|
SKU:
650837

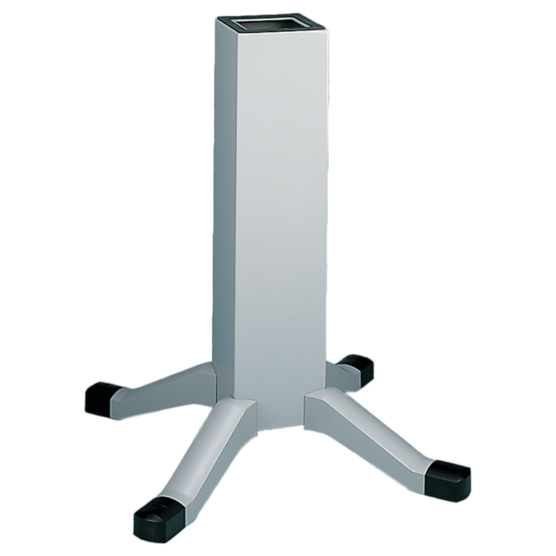

Hoffman AP36L44 | Pedestal with Legs, 36.00x4.00x4.00, Gray, Steel
Regular price
$1,597.70
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman AP36L44 | Pedestal with Legs, 36.00x4.00x4.00, Gray, Steel
Regular price
$1,597.70
Unit price
Description
Description
Pedestal with legs is used to support various HMI enclosures and provides optimal viewing and operating height. Four sturdy, die-cast legs bolt to the one-piece mild steel vertical tube for rigidity. Legs will accept casters in limited applications. Heavy-duty black polymer caps fit on ends of legs to cover bolts or levelers. Two heights are available as standard offering to meet your ergonomic requirements.
Main Features
- Use 4.00 x 4.00-in. (102 x 102-mm) pedestal with Concept HMI and InLine HMI Enclosures
- Use 8.00 x 8.00-in. (203 x 203-mm) pedestal with ProLine Sloped-Front HMI Enclosures
- Attach pedestal to HMI base with cutout, swivel, swivel tilt or angle adapter with pre-drilled holes
- Hardware and gasket to attach enclosure are included
Specifications
Specifications
Hoffman On Demand Alternatives
- Catalog #: AP36L88
- Catalog #: AP36L44
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 4 in / 102 mm |
| Material | Mild Steel |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Thickness | 14 ga / 1.9 mm |
| Weight | 36.9 lb |
| BULLETIN NUMBER | P1 |
