Brand: Hoffman
|
SKU:
650845

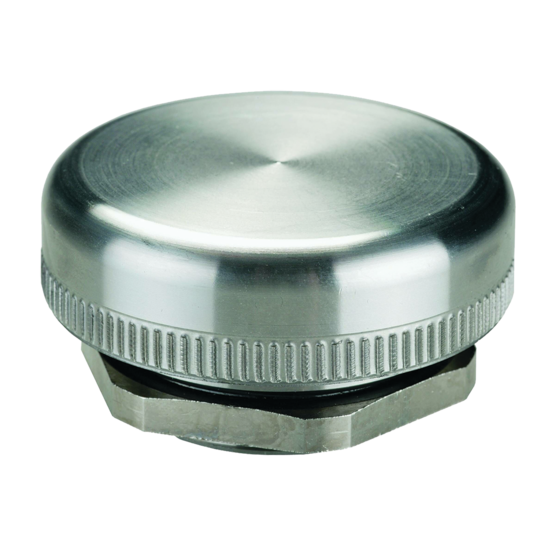

Hoffman APCDSS6 | Stainless Steel Pressure Compensation, SS Type 316
Regular price
$642.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman APCDSS6 | Stainless Steel Pressure Compensation, SS Type 316
Regular price
$642.73
Unit price
Description
Description
Pressure differentials in a tightly sealed enclosure result from heat generated by electrical and electronic equipment within the enclosure and fluctuations of outside ambient temperature. Stainless steel pressure compensation devices provide IP66 protection in corrosive applications requiring slow pressure equalization. For optimal performance, install two plugs diagonally to each other.
Main Features
- Air permeability = 42 cubic feet/hour (1,200 liters/hour) at a pressure difference of min. 70 mbar
- Easy installation: drill one 1.60-in. (41-mm) diameter hole
- Sealing gasket (Nitrile Buna-N Rubber)
- Semipermeable membrane inside the plug filters moisture and dust
- Mounting thread M40 with union nut
Specifications
Specifications
Specifications
| Height | 1.22 in / 30.988 mm / 31 mm |
|---|---|
| Width | 2.28 in / 57.912 mm |
| Depth | 2.28 in / 57.912 mm |
| Material | Stainless Steel 316L |
| Diameter | 2.28 in / 58 mm |
| Color | Unpainted |
| Finish | Brushed #3 |
| Weight | 0.4 lb |
| BULLETIN NUMBER | D85 |
