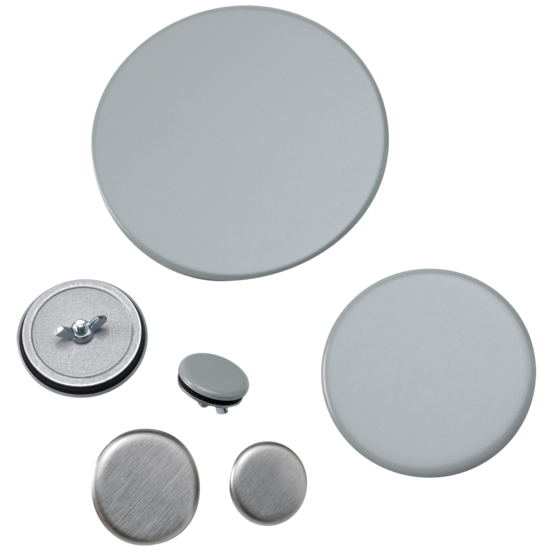

Hoffman AS100SS | Hol-Sealers Hole Seal, 1.88 Diameter, SS Type 304
Regular price
$77.56
Unit price
Brand: Hoffman
|
SKU:
437641
Regular price
$77.56
Unit price
Description
Description
Seal extra pushbutton holes, conduit openings and knockout openings against dust, dirt, oil and water with Hol-Sealers hole seals . Seals will cover any size or shape of hole from .19-in. diameter to maximum diameter shown in table. Can be used on enclosure walls up to .31-in. (8-mm) thick. Maintains enclosures Type rating 3R, 4, 4X (Stainless Steel version only) 12, and 13 when installed in an nVent HOFFMAN enclosure.
Main Features
- Available in multiple colors and sizes
- Oil-resistant gasket provided
- Steel model has plated stud (10-32x5/8) and wing nut
- Stainless steel model has 300 series stainless steel stud (10-24x5/8) and wing nut
Specifications
Specifications
Industry Standards
- UL 508A Component Recognized; Type 3R, 4, 12, 13; File No. E61997 (MS)
- UL 508A Component Recognized; Type 3R, 4, 4X, 12, 13; File No. E61997 (SS)
- Steel Hole Seals
- CSA File No. 42186; Type 3R, 4, 12, 13
- NEMA/EEMAC Type 3R, 4, 12, 13
- IEC 60529, IP66
Hoffman On Demand Alternatives
- Catalog #: AS200
- Catalog #: AS150
- Catalog #: AS100
- Catalog #: AS075SS
- Catalog #: AS075
- Catalog #: AS050SS
- Catalog #: AS050
Specifications
| Material | Stainless Steel 304 |
|---|---|
| Finish | Polished |
| Color | Unpainted |
| Thickness | 16 ga / 1.5 mm |
| Usage | 1-in. conduit holes |
| Max Hole Diameter | 1.38 in |
| Min Hole Diameter | 35 mm |
| Hol-Sealer Diameter | 1.88 in / 48 mm |
| Weight | 0.1 lb |
| BULLETIN NUMBER | A80HS |
