Brand: Hoffman
|
SKU:
446047

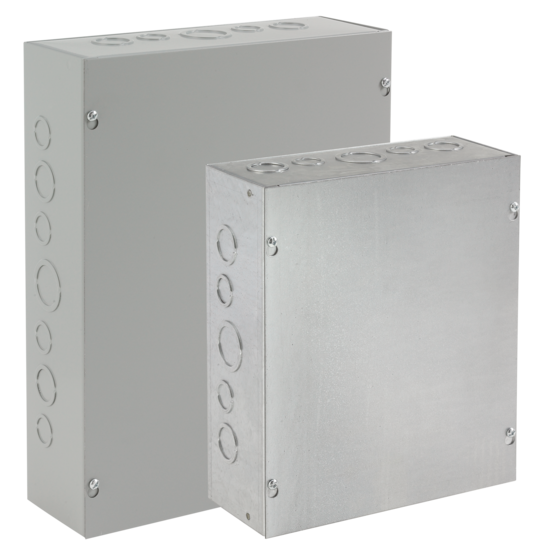

Hoffman ASG24X24X10NK | Screw-Cover, Type 1, 24.00x24.00x10.00, Galvanized
Regular price
$414.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman ASG24X24X10NK | Screw-Cover, Type 1, 24.00x24.00x10.00, Gal...
Regular price
$414.50
Unit price
Description
Description
Screw-Cover, Type 1, is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. It has a variety of accessories for flush installations and wiring space extensions.
Main Features
- Unique keyhole screw slots in the cover
- Available with or without knockouts
- Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts
- Optional flush-mounted door frame available
- Optional flush covers
- Flat, removable covers fastened with plated steel screws
- Provision for grounding
- Mounting holes on back of box
- Enclosures are finished with paint over plated surfaces
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 1; File No. E27525
- cUL Listed per CSA C22.2 No 40; Type 1; File No. E27525
- NEMA/EEMAC Type 1
- IEC 60529, IP30
Related Accessories
- Catalog #: PB2424PP
- Catalog #: A24244SUG
- Catalog #: AFDF2424P
- Catalog #: AFE24X24
- Catalog #: AGS816
- Catalog #: AGLK2
- Catalog #: AGS408
- Catalog #: AGS416
Specifications
| Height | 24 in / 610 mm |
|---|---|
| Width | 24 in / 610 mm |
| Depth | 10 in / 254 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Finish | Galvanized; Powder Coated / Galvanized; Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Body Thickness | 14 ga / 1.9 mm |
| Door Thickness | 16 ga / 1.52 mm |
| Style | Galvanized |
| Knockouts Included | No |
| BULLETIN NUMBER | A90P1 |
Documents and Downloads
Documents and Downloads
- Hoffman ASG24X24X10NK Data Sheet
- Hoffman ASG24X24X10NK EU Declaration of Conformity, Type 1 Industrial Control Enclosures
- Hoffman ASG24X24X10NK Declaration of Conformity, Mild Steel Screw Cover Enclosure
- Hoffman ASG24X24X10NK Declaration of Compliance
- Hoffman ASG24X24X10NK Screw-Cover Type 1 Pull Boxes and Accessories Spec Sheet
