Brand: Hoffman
|
SKU:
650932

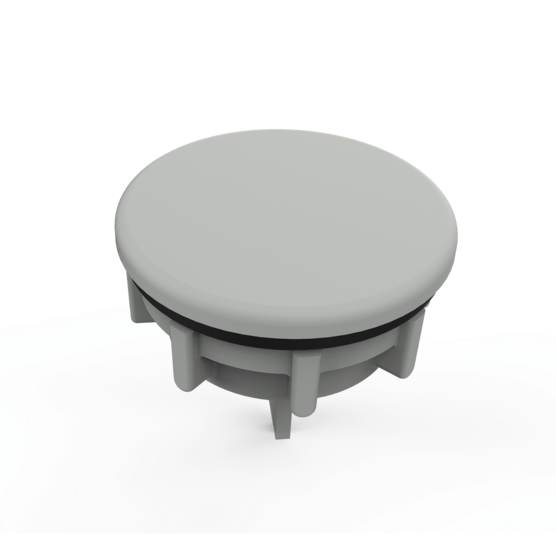

Hoffman ASPB05075NM | Hol-Sealers Non-Metallic Hole Seal, 1.57 Dia., Plastic
Regular price
$37.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman ASPB05075NM | Hol-Sealers Non-Metallic Hole Seal, 1.57 Dia....
Regular price
$37.48
Unit price
Description
Description
Designed for use in corrosive environments to seal extra pushbutton holes, conduit openings and knockout openings against dust, dirt, oil and water. These hole seals are suitable for sealing enclosure openings in industries such as petroleum and chemical processing, wastewater processing, pulp and paper, outdoor monitoring and any other industry exposed to harsh environments.
Main Features
- Innovative 3-in-1 self-centering design reduces inventory requirements; 3 models cover 9 common industry cutouts ranging from 1/2 inch (13mm) to 2-1/2 inch (64mm)
- Non-metallic construction provides superior corrosion resistance for reliability in harsh environments
- UV stabilized; ideal for direct sunlight (avoids fiberbloom associated with fiberglass)
- Chemically resistant to a broad range of chemicals
- Durable and impact resistant; resists cracking
- Sold in quantities of 2 per catalog number
- Cost-effective alternative to stainless steel
- Polyester material has a UL 94 rating of 5VA
- Easy to install; no tools required
- Thread and nut are constructed of non-glass-filled polyester
- Oil-resistant gasket included
Specifications
Specifications
Industry Standards
- UL 508A Component Recognized; Type 3R, 4, 4X, 12, 13; File No. E61997
- CSA File No. 42186; Type 3R, 4, 12, 13
- NEMA/EEMAC Type 3R, 4, 12, 13
- IEC 60529, IP66
- Stainless Steel Hole Seals
Specifications
| Min Hole Diameter | 33 mm |
|---|---|
| Outside Diameter | 1.56 in / 40 mm |
| Torque | 15 lbf/in |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Textured |
| Material | Polyester |
| Thickness | 0.12 in / 3 mm |
| Weight | 0.1 lb |
| BULLETIN NUMBER | A80HS |
