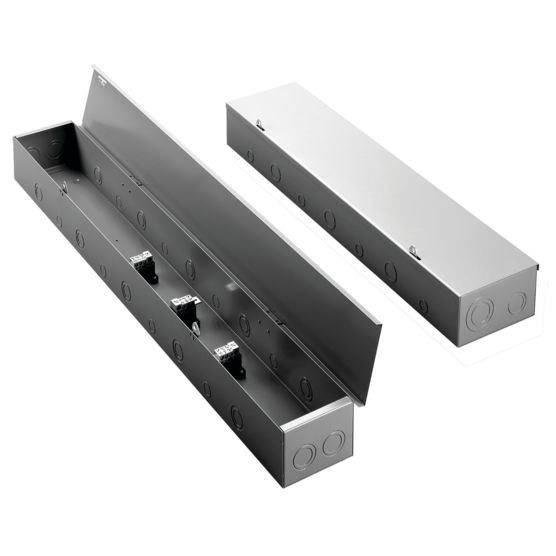

Hoffman AST384R | Splitter Trough, Type 1, 36" Section, Gray, ...
Regular price
$336.94
Unit price
Brand: Hoffman
|
SKU:
9886089
Regular price
$336.94
Unit price
Description
Description
Splitter Trough, Type 1 splits feeder circuit conductors into multiple branch circuit conductors. It includes pre-installed terminal blocks for three- and four-wire power distribution systems.
Reference Spec Sheet for Knockout Size and Spacing table.
Main Features
- Various size knockouts on each side
- Hinged covers
- Mounting holes in back
- Includes single-point ground lug
- Ground Splitter (ground bar) accessory available
Specifications
Specifications
Specifications
| Height | 36 in / 914 mm |
|---|---|
| Width | 6 in / 152 mm |
| Depth | 4.5 in / 114 mm |
| Protection Rating | NEMA Type 1 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 14 ga / 1.9 mm |
| Wire Quantity | 4 |
| Main Lug Amps CU | 85 A |
| Main Lug Wire Size | 14-1 kcmil |
| BULLETIN NUMBER | S90T |
