Brand: Hoffman
|
SKU:
9886104
Hoffman AST5603R | Splitter Trough, 3-wire, 600 amps, Type 1, 60" Section, Gray, Steel
Regular price
$1,050.38
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman AST5603R | Splitter Trough, 3-wire, 600 amps, Type 1, 60&qu...
Regular price
$1,050.38
Unit price
Brand: Hoffman
|
SKU:
9886104
Regular price
$1,050.38
Unit price
Description
Description

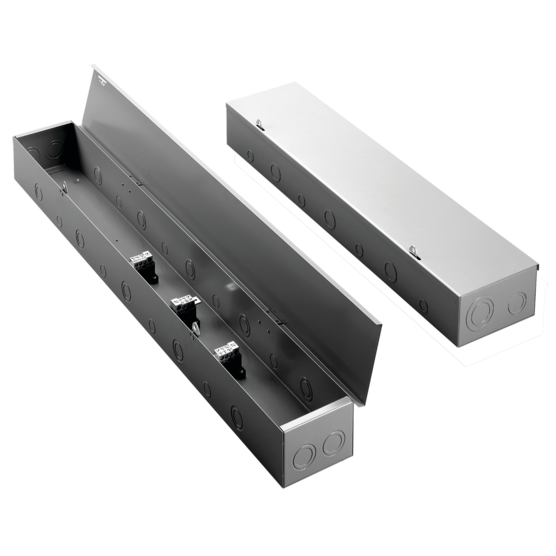

Splitter Trough, Type 1 splits feeder circuit conductors into multiple branch circuit conductors. It includes pre-installed terminal blocks for three- and four-wire power distribution systems.
Reference Spec Sheet for Knockout Size and Spacing table.
Main Features
- Various size knockouts on each side
- Hinged covers
- Mounting holes in back
- Includes single-point ground lug
- Ground Splitter (ground bar) accessory available
Specifications
Specifications
Specifications
| Height | 60 in / 1524 mm |
|---|---|
| Width | 11 in / 279 mm |
| Depth | 6.5 in / 165 mm |
| Protection Rating | NEMA Type 1 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 14 ga / 1.9 mm |
| Wire Quantity | 3 |
| Main Lug Amps CU | 600 A |
| Main Lug Wire Size | 1/0-250MCM: 4-600MCM kcmil |
| BULLETIN NUMBER | S90T |
