Hoffman AST88 | Swivel Tilt for Pedestal, 8.00x8.00x8.00, Aluminum
Description
Description

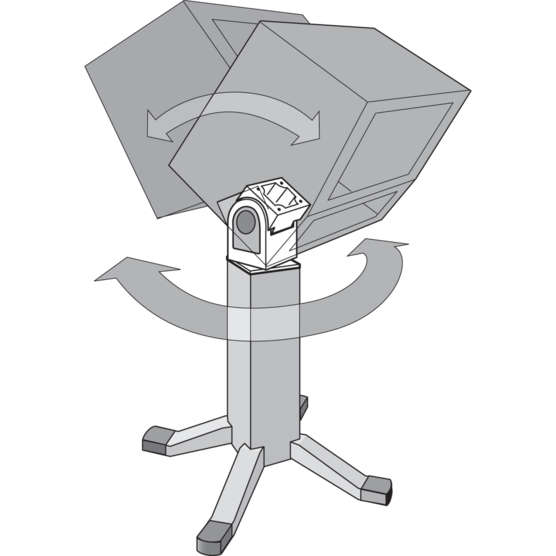

A swivel and tilt mechanism provides an easy way to rotate and tilt an HMI enclosure to a convenient operating position. It is designed for use between the bottom of an HMI enclosure and a pedestal (enclosure reinforcement may be required). Tilt lock has a large release knob that allows quick incremental adjustment. Swivel can be locked in any position for safe operation. A large center opening accommodates control cables that have attached plugs.
Main Features
- Tilt allows forward and backward movement up to 30 degrees from horizontal
- Swivel allows 350-degree maximum rotation
- Integral stops at 30-degree increments between 60 degrees and 180 degrees of rotation
- Hardware and gasket to attach enclosure are included
- Do not use the swivel between an overhead support and an enclosure
Specifications
Specifications
Hoffman On Demand Alternatives
- Catalog #: AST88
- Catalog #: AST44
Specifications
| Height | 8 in / 203 mm |
|---|---|
| Width | 8 in / 203 mm |
| Depth | 8 in / 203 mm |
| Material | Aluminum |
| Max Enclosure Size | 838 x 610 x 610 mm / 33.0 x 24.00 x 24.00 in |
| Max Load, Including Enclosure | 68 kg / 150 lb |
| Color | Unpainted |
| Finish | Anodized |
| Thickness | 0.15 in / 3.81 mm |
| Weight | 16.3 lb |
| BULLETIN NUMBER | P1 |
